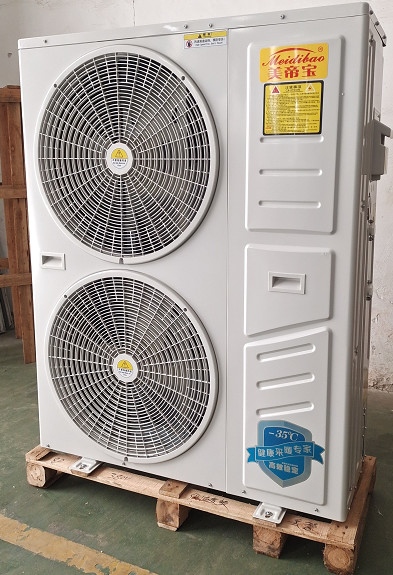

18KW Low Ambient EVI Heat Pump with Quiet Operation and Inverter Technology

18KW Low Ambient EVI Heat Pump with Quiet Operation and Inverter Technology

Brand Name:	meidibao
Model Number:	M-D18AEH
MOQ:	5 units
Price:	negotiate a price
Payment Terms:	T/T
Supply Ability:	50 units day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Product Brochure PDF

Name:

EVI Heat Pump

Model:

M-D18ADH

Brand Name:

MEIDIBAO

Place Of Origin:

China

Refrigerant:

R410

Type:

Inverter

Color:

White,OEM

Packaging Details:

plywood box or Plywood box

Highlight:

18KW Low Ambient Heat Pump

18KW Low Ambient Temperature Heat Pump

Low Ambient Heat Pump Inverter Type

Product Description

18KW Low Ambient Heat Pump Inverter Type

Quiet Operation, Space Saving Low Ambient Heat Pump

Product Overview

The Meidibao Fixed Frequency Commercial EVI Series is engineered with advanced technologies to ensure exceptional stability and reliability, effectively handling extreme temperature challenges while maintaining stable operation. The ideal winter temperature range of 18-20℃ is easily achievable with this high-performance system.

Technical Specifications

Model	M-D18ADH
Heating Capacity Range	8.2-27 kW (27978-92124 BTU/h)
Heating Power Input Range	1.9-7.1 kW
Cooling Capacity Range	4.9-16.2 kW (16718-55274 BTU/h)
Cooling Power Input Range	1.6-6.5 kW
Frequency	30-90 Hz
ErP Level (35℃)	A++
ErP Level (55℃)	A+
Power Supply	3N 380V 50HZ
Max. Running Current	14.9 A
Refrigerant Type	R410A
Refrigerant Quantity	3.1 kg
Compressor Brand	Mitsubishi Electric
Water Pump Brand	WiLo
Water Connection	1"
Water Flow	4.6 m³/h
Water Pressure Drop	10 kPa
Water Pump Head	11.8 m
Noise Level	56 dB(A)
Net Weight	188 kg
Gross Weight	243 kg
Net Dimensions (L×W×H)	1078×380×1335 mm
Operating Ambient Temperature	-25°C to 43°C

Key Features

Compressor: World-famous brand rotary type or fully enclosed vortex compressor with low noise, low vibration, high efficiency, and long service life. Multiple compressors enable automatic unloading at partial load for energy savings.
Water Side Heat Exchanger: High-efficiency shell tube or threaded casing heat exchanger with small volume, light weight, easy disassembly, and maximum working pressure of 45kgf/cm². Insulated with 10mm PE to prevent energy loss.
Air Side Heat Exchanger: Integral hydrophilic finned inner threaded tube design with large windward area, high heat transfer efficiency, and resistance to oxidation and corrosion. Ensures sufficient heating capacity in cold winter conditions.
Low Noise Fan: Domestic famous brand motor with axial impeller design, anti-aging blades, and strict balance experiments for optimal performance and noise control.
Housing Materials: Galvanized steel external sheet metal with rust removal, cleaning, drying, and electrostatic spraying for durable, attractive appearance.

Performance Advantages

Energy Efficiency: Significantly reduces energy consumption compared to traditional heating and cooling methods
Versatility: Provides both heating and cooling functions in one unit for year-round flexibility
Environmentally Friendly: Produces fewer emissions and offers sustainable operation
Cost Savings: Lower energy bills over time due to efficient operation
Quiet Operation: Minimal disturbance to the environment
Space-Saving: Consolidates heating and cooling into a single compact unit
Fast Response: Quickly adjusts temperature to meet desired settings
Improved Indoor Air Quality: Maintains proper humidity levels and filters air
Long Lifespan: Durable construction ensures many years of reliable service
Easy Control: User-friendly controls for convenient operation and temperature management

Advanced Technology

The Meidibao Fixed Frequency Commercial EVI Series incorporates intelligent defrosting technology that determines defrosting timing based on operating conditions, ambient temperature, and frost thickness. This intelligent approach reduces defrosting time by over 20% while ensuring high heating capacity. The wide adjustment capacity technology provides more accurate water temperature control with smaller temperature fluctuations, eliminating noise and water temperature issues caused by frequent start-stop cycles.
