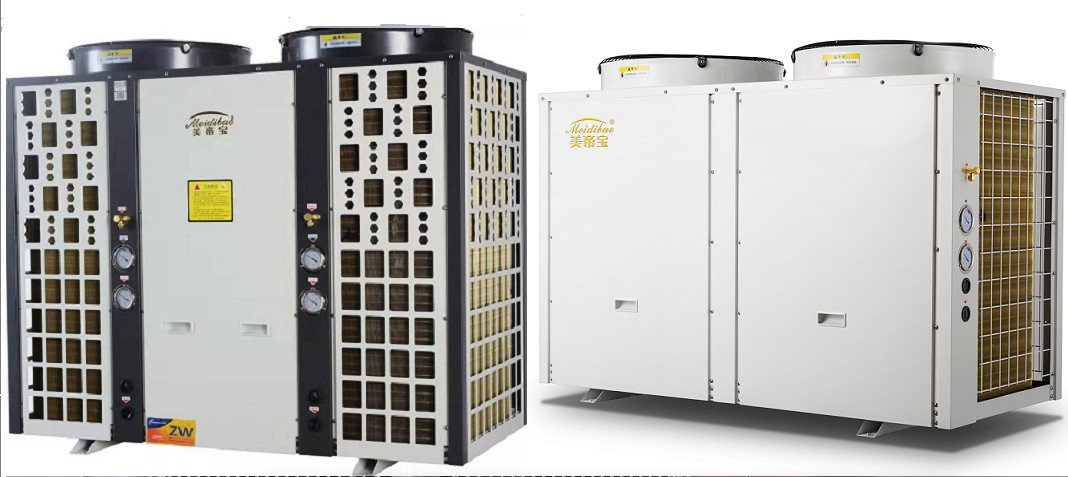

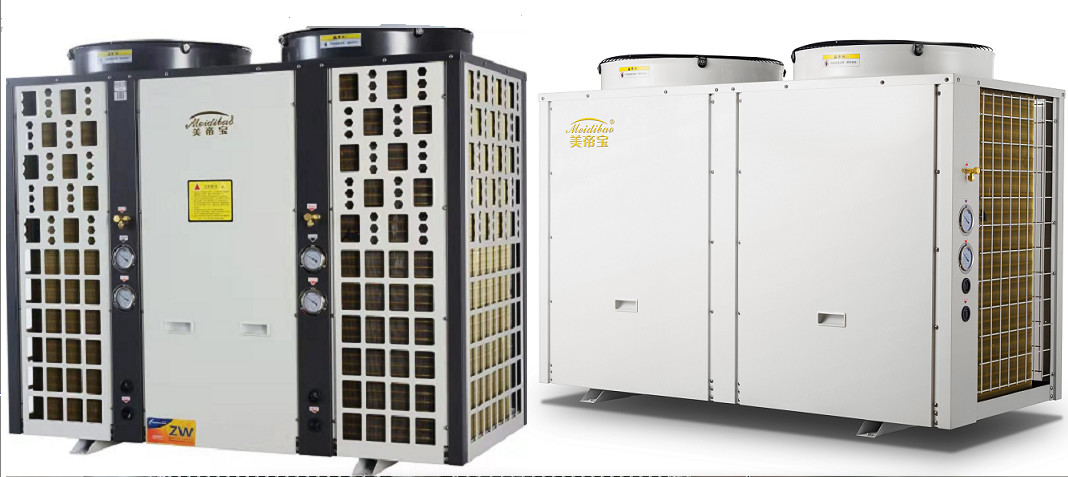

High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump

Basic Information
Place of Origin: China
Brand Name: Meidibao
Certification: CE
Model Number: DKFXRS-35II-M3
Document: Product Brochure PDF
Minimum Order Quantity: 3units
Price: negotiate a price
Packaging Details: Factory standards
Delivery Time: Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Payment Terms: T/T
Supply Ability: 300 units per Month
Detail Information
Material: Galvanized Sheet Use: Hot Water
Waterproof Level: IP×4 Working Ambient Temperature: -35~43C
Factory: Guangdong,China Brand Name:: MEIDIBAO Of OEM
Name: EVI Heat Pump
Highlight:

High Efficiency EVI Air Source Heat Pump

,

EVI Air Source Heat Pump R410A

,

Low Temp Water Heater Heat Pump


Product Description

High Efficiency EVI Air Source Heat Pump R410a Low Temp water heater



Product Description:

Foshan Meidibao Electric Appliance Co.,Ltd relys on science and technology, walks the road of scientifc management, adheres to the good faith management, serves the community for the purpose and pays attention to create the energy conservation and environmental friendly product.After many years of accumulation and development, R&D abiliy and service level gradually increases with series of patent and independent intellectual property rights,Meidibao has sound production equipment and perfect craftmanship process with regular and bespoke experience and capacity for air source heat pump producing over thousands of heat pump per year.



Feature:

1. Low-temperature heating at minus 35 degrees, greatly expanding the scope of application

2. Multi-folding column, unit strength increased by 30%

3. Up to 8 modular machines in parallel

4. Intelligent defrosting technology to reduce heat attenuation



Specification:



Heat pump   DKFXRS-35II-M3
Power supply V-Hz 380V-415V/3PH/50Hz
Working temp -35~43
Min./Max.out water temp 55/60
Output Heating Capacity(20℃/15℃) KW 36
Innut power KW 9
Output Heating Capacity(-12℃/-14℃) KW 19
Innut power KW 7.9
MAX Rated current A 22
Compressor   Scroll
Refrigerant   R410A
Condenser   Copper tube in shell
Wire controller   Intelligent/LCD
Dimension(L*W*H)   1500*750*1060



Advantages:


Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.



High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump 0

High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump 1

High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump 2

High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump 3

High Efficiency EVI Air Source Heat Pump R410A Low Temp Water Heater Heat Pump 4
