25.3kW Heating Capacity Air Source Heat Pump with EVI Technology for Low Energy Consumption in Extreme Temperatures

25.3kW Heating Capacity Air Source Heat Pump with EVI Technology for Low Energy Consumption in Extreme Temperatures

Brand Name: Meidibao
Model Number: M-D25ADH
MOQ: 6units
Price: negotiate a price
Payment Terms: T/T
Supply Ability: 20units a day
Detail Information
Place of Origin:
China
Certification:
CE
Brand Name:
Meidibao
Color:
Galvanized
Power:
380V/3N/50Hz
Operation Condition:
-30°C-40°C
Compressor:
Copeland
Fan Direction:
Side
Packaging Details:
Factory standard
Highlight:

25.3kw Air Source Heat Pump

,

EVI Air Source Heat Pump

Product Description
Air Source Heat Pump - 25.3kW Heating Capacity with EVI Low Temperature Technology
Product Overview

This advanced air source heat pump delivers exceptional heating performance with low energy consumption, featuring Enhanced Vapor Injection (EVI) technology for reliable operation in extreme low-temperature conditions.

Key Features
  • Energy-Efficient Operation
    Equipped with advanced EVI (Enhanced Vapor Injection) technology, this heat pump maintains outstanding performance in low-temperature environments, ensuring high COP (Coefficient of Performance) and reduced energy costs.
  • Low-Temperature Adaptability
    Perfectly engineered for use in extreme climates, the system functions seamlessly in temperatures as low as -25°C, making it a reliable choice for cold regions.
  • Eco-Friendly Solution
    Utilizing environmentally friendly refrigerants, this heat pump aligns with global sustainability standards, reducing carbon emissions while maintaining excellent heating efficiency.
  • Quiet and Durable Design
    Built with noise-reduction technology, this system operates quietly, ensuring a peaceful environment. The robust construction guarantees long-term durability, even in harsh weather conditions.
  • Smart Control Options
    Features intelligent controls, including Wi-Fi compatibility for remote monitoring and management, offering ultimate convenience and flexibility.
Applications
  • Residential Heating: Warm up homes effectively without skyrocketing energy bills
  • Commercial Spaces: Ideal for offices, hotels, and retail stores requiring consistent, efficient heating
  • Industrial Use: Suited for large-scale heating needs in warehouses or factories
  • Swimming Pools: Maintain pool water at a comfortable temperature year-round
Technical Specifications
Heating Capacity 25.3 kW
Technology Enhanced Vapor Injection (EVI)
Operating Temperature Range -25°C to 45°C
Energy Efficiency High COP, optimized for low energy consumption
Noise Level Low-noise operation for quiet environments
Detailed Specifications
Specification Unit M-D25ADH
Heating Capacity Range kW 10.8-36
Heating Capacity Range BTU/h 36849-122832
Heating Power Input Range kW 2.5-9.5
Cooling Capacity Range kW 6.5-21.6
Cooling Capacity Range BTU/h 22178-73699
Cooling Power Input Range kW 2.1-8.8
Frequency Hz 30-90
ErP level(35℃) / A++
ErP level(55℃) / A+
Power Supply / 3N 380V 50HZ
Electric Heater kW /
Max.Running Current A 21.8
Refrigerant Type / R410A
Refrigerant Quantity kg 3.3
Compressor Brand / Mitsubishi Electric
Water Pump Brand / WiLo
Water Connection / 1"
Water Flow m³/h 6.2
Water Pressure Drop kPa 10
Water Pump Head m 11.8
Fan Motor Quantity / 2
Motor Power Input(max) W 136
Motor Power Input(min) W 18
Fan Speed (max) rpm 850
Fan Speed (min) rpm 300
Pressure Sensor 1 Bar 0-20
Pressure Sensor 2 Bar 0-45
Noise dB(A) 58
Net Weight kg 183
Gross Weight kg 235
Net Dimension(L/W/H) mm 1370×580×1525
Shipping Dimension(L/W/H) mm 1480×690×1690
Energy Efficiency Advantage
Under ideal weather conditions, heat pump water heaters produce three times the energy used to power the heat pump. In other words, heat pump water heaters use one-third of the electricity of conventional electric water heaters. The average residential customer would save significantly on monthly energy costs using a MEIDIBAO heat pump water heater.
Product Images

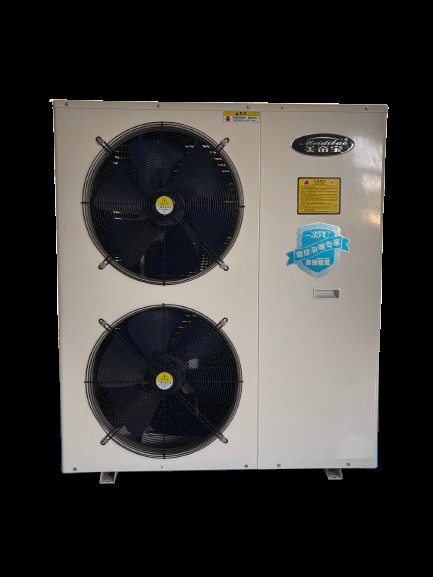

Air source heat pump exterior view Heat pump technical diagram Heat pump installation example Heat pump component details Heat pump control interface Heat pump performance chart Heat pump specifications diagram Heat pump dimensional drawing
