Place of Origin: | China |
---|---|
Brand Name: | meidibao |
Certification: | CE |
Model Number: | M-D10AAH |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 6 units |
Price: | negotiate a price |
Packaging Details: | Factory standards |
Delivery Time: | 25-30 work days |
Payment Terms: | T/T |
Supply Ability: | 20 units day |
Name: | EVI Air Source Heat Pump | Brand Name: | MEIDIBAO |
---|---|---|---|
Heating: | 10KW | Model: | M-D10AAH |
Place Of Origin: | China | Type: | Fixed |
Color: | White,OEM | ||
Highlight: | Low Tempterature EVI Heat Pump,10KW EVI Heat Pump,Domestic EVI Heat Pump |

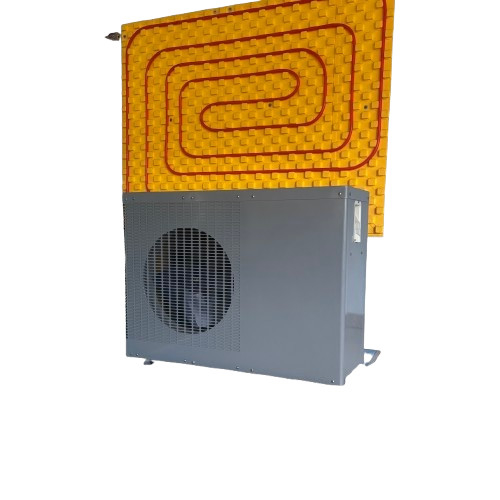

10KW EVI Low Tempterature Heating Air Source Heat Pump Domestic Used Hot Water
Product Description:
The 10kW EVI Low-Temperature Air Source Heat Pump is designed to provide efficient heating and hot water for residential use, even in extremely cold conditions. With Enhanced Vapor Injection (EVI) technology, this unit ensures stable operation at temperatures as low as -25°C, making it ideal for homes in colder regions. By utilizing renewable air energy, it significantly reduces energy costs while offering consistent heating and hot water supply.
Feature:
1. EVI Technology for Low-Temperature Operation
2. Energy-Saving & Cost-Effective
3. Domestic Hot Water & Space Heating
4. Environmentally Friendly
5. Housing materials The external sheet metal is made of galvanised steel, and all sheet metal parts are pre-treated with rust removal, cleaning and drying, and then electrostatic spraying is used to paint the internal and external surfaces of each piece of sheet metal for a beautiful appearance
Specification:
Model | M-D10AAH | |
Heating Capacity Range | kW | 10 |
BTU/h | 34120 | |
Heating Power Input Range | kW | 2.61 |
Cooling Capecity Range | kW | 6 |
BTU/h | 20472 | |
Cooling Power Input Range | kW | 2.4 |
Frequency | Hz | 50 |
ErP level(35℃) | / | A++ |
ErP level(55℃) | / | A+ |
Power Supply | / | 1N 220V 50HZ |
Electric Heater | kW | / |
Max.Running Current | A | 15.3 |
Refrigerant Type | / | R410A |
Refrigerant Quantity | kg | 1.1 |
Compressor Brand | / | Mitsubishi Electric |
Water Pump Brand | / | WiLo |
Water Connection | / | 1" |
Water Flow | m³/h | 1.72 |
Water Pressure Drop | kPa | 10 |
Water Pump Head | m | 8 |
Fan Motor Quantity | / | 1 |
Motor Power Input | W | 110 |
Fan Speed | rpm | 850 |
Noise | dB(A) | 52 |
Net Weight | kg | 65 |
Gross Weight | kg | 98 |
Net Dimension(L/W/H) | mm | 1030×350×552 |
Shippping Dimension(L/W/H) | mm | 1140×470×717 |
Operation Ambient Temp. | ℃ | -25~43℃ |
Advantages:
1. Efficient Heating in Extreme Cold (-25°C)
2. Significant Energy Savings
3. Dual Function: Domestic Hot Water & Space Heating
4. Eco-Friendly & Sustainable
5. Reliable & Durable Performance
6. Smart & Safe Operation
✔ Reliable operation in cold climates
✔ Reduces electricity bills with high efficiency
✔ Provides both hot water and space heating
✔ Eco-friendly and energy-efficient heating solution
