Meidibao 220V/3PH/3N Wide Range Use Commerical Air Source Heat Pump

Basic Information
Place of Origin: China
Brand Name: meidibao
Certification: CE
Model Number: MDB-100WD
Document: Product Brochure PDF
Minimum Order Quantity: 5 SET
Price: negotiate a price
Packaging Details: wooden frame or plywood box
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 5 set one day
Detail Information
Type: Air Source Heat Pump Heat Exchanger: PPR Shell Titanium Tube
Refrigerant: R410A Power Supply: 220V/3PH/3wire /60Hz Or 50Hz
Compressor Type: Scroll Material: Galvanized Sheet Or 304#
Highlight:

220V Commerical Air Source Heat Pump

,

3PH Commerical Air Source Heat Pump


Product Description

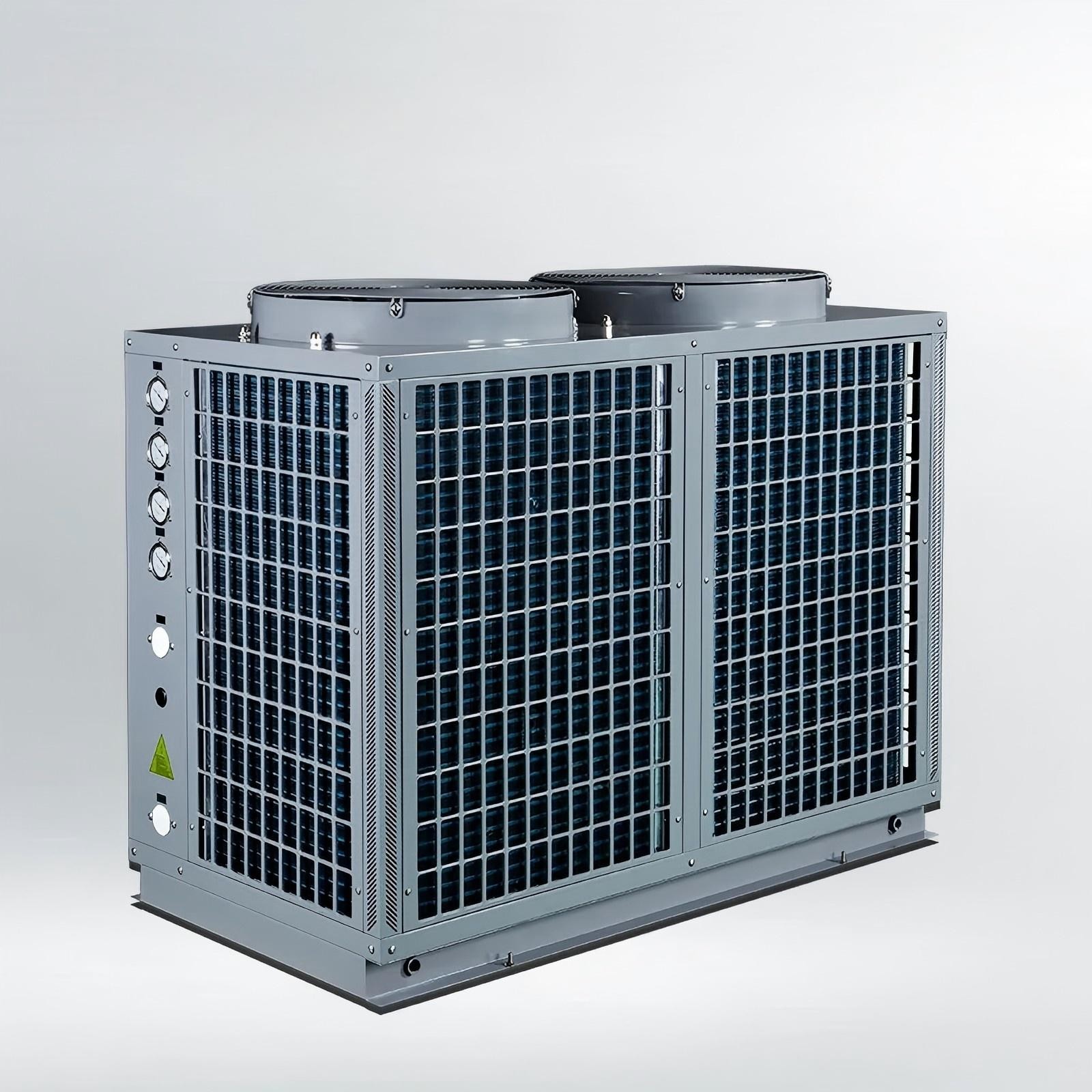

Meidibao 220V/3PH/3N Wide Range Use Commerical Air Source Heat Pump


Product Description:

The Meidibao 220V/3PH/3N Commercial Air Source Heat Pump is designed for large-scale heating and hot water applications, providing stable, energy-efficient performance for a variety of commercial and industrial settings. Built with advanced heat pump technology, this unit ensures high efficiency, durability, and cost savings.


Feature:

Wide Voltage & Three-Phase Power (220V/3PH/3N)

Energy-Efficient Air Source Technology

High COP (Coefficient of Performance)

Reliable Heating & Hot Water Supply

Eco-Friendly Refrigerant (R410A/R32 Available)

Low-Noise & Stable Operation


Specification:


Product Air source heat pump
Model MDB-100WD
Climatic type Normal
Power supply 220V/3HP/60Hz
Rated heating capacity 36kW
Rated power input 10kW
Max Rated current 39.8A
Refrigerant R410
Rated water temp. 55℃
Max hot water temp. 60℃
working temp 0-43℃
water pipe size 3"
Noise ≤68dB(A)
Product dimension 1500×710×1270mm
Net weight 240kg
Testing condition:ambient Dry/Wet Bulb Temp: 20℃ / 15℃ ;Water Inlet Outlet Temp: 15℃ / 55℃


Advantages:

Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.


Wide Applications:

Hotels & Resorts
Hospitals & Nursing Homes
Factories & Industrial Facilities
Schools & Office Buildings
Swimming Pools & Spas
