Detail Information

Fan Direction:	Side	Color:	Galvanized
Power:	380V/3N/50Hz	Operation Condition:	-30°C-40°C
Compressor:	Copeland	Brand Name:	Meidibao
Highlight:	Dc Inverter Water Source Heat Pump , Household Water Source Heat Pump

Product Description

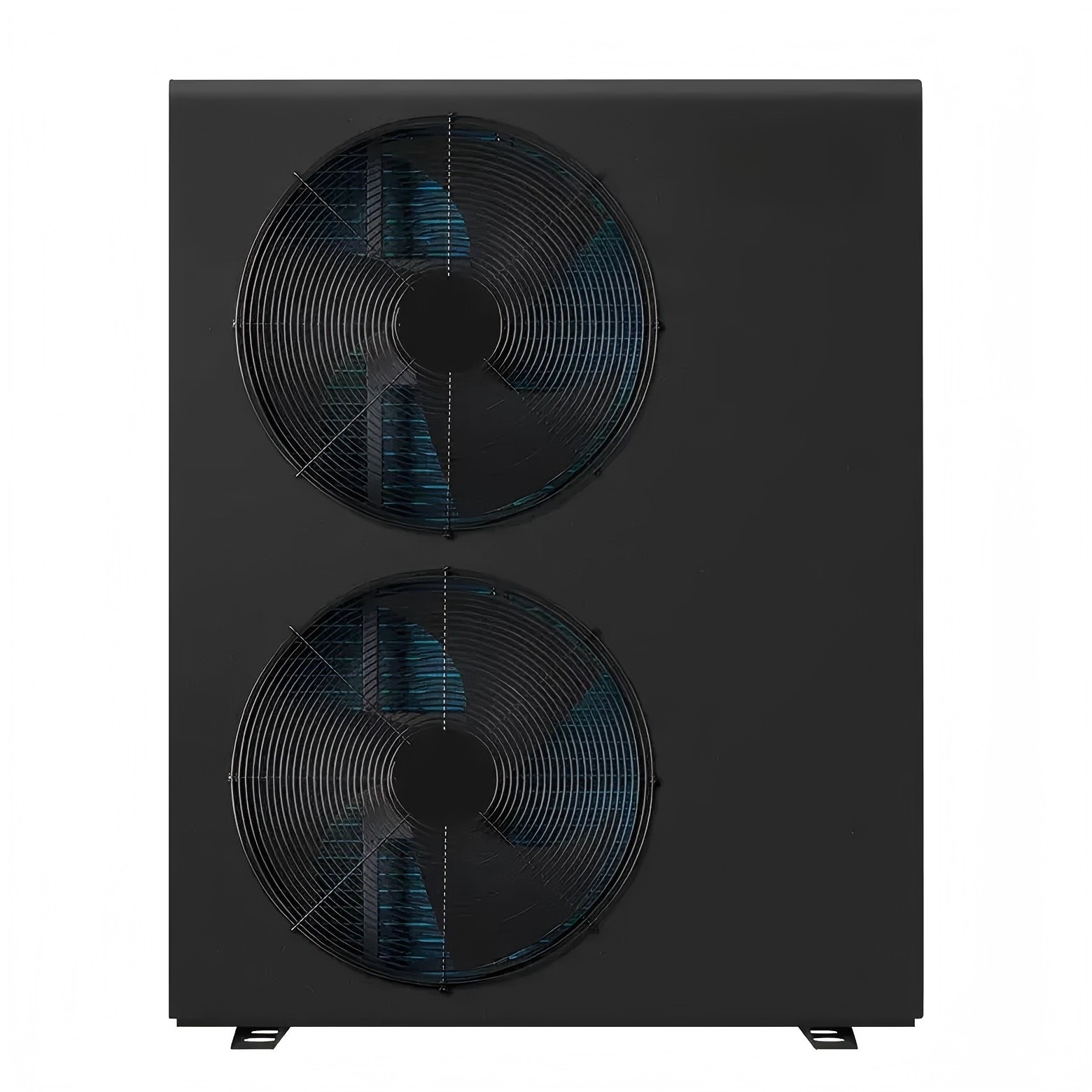

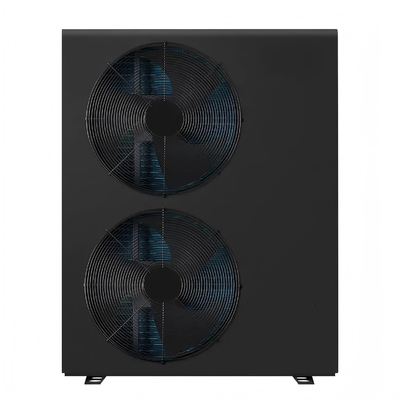

Household Dc Inverter Air to Water Source Heat Pump Dc Inverter Air to Water Source Heat Pump

This DC Inverter Air to Water Source Heat Pump is an all-in-one, energy-saving system designed to meet the heating, cooling, and domestic hot water needs of residential homes. Utilizing advanced inverter technology, it adjusts output intelligently based on real-time demand—delivering maximum comfort with minimum energy consumption.

Key Features

DC Inverter Technology
All-Season Comfort
Air Source Heat Pump Water Heating
Hot Water Supply up to 60°C
Reliable Performance

Applications

Residential Heating: Warm up homes effectively without skyrocketing energy bills.
Commercial Spaces: Ideal for offices, hotels, and retail stores requiring consistent, efficient heating.
Industrial Use: Suited for large-scale heating needs in warehouses or factories.
Swimming Pools: Maintain pool water at a comfortable temperature year-round.

Why Choose Meidibao EVI Heat Pump?

Energy Saving
Multi-Functionality
Stable and Silent Operation
Environmentally Friendly
Smart Control Options
Wide Ambient Temperature Range
Durable and Low Maintenance
Easy Installation
Monoblock design

Specification:

Model		M-D25ADH
Heating Capacity Range	kW	10.8-36
Heating Capacity Range	BTU/h	36849-122832
Heating Power Input Range	kW	2.5-9.5
Cooling Capecity Range	kW	6.5-21.6
Cooling Capecity Range	BTU/h	22178-73699
Cooling Power Input Range	kW	2.1-8.8
Frequency	Hz	30-90
ErP level(35℃)	/	A++
ErP level(55℃)	/	A+
Power Supply	/	3N 380V 50HZ
Electric Heater	kW	/
Max.Running Current	A	21.8
Refrigerant Type	/	R410A
Refrigerant Quantity	kg	3.3
Compressor Brand	/	Mitsubishi Electric
Water Pump Brand	/	WiLo
Water Connection	/	1"
Water Flow	m³/h	6.2
Water Pressure Drop	kPa	10
Water Pump Head	m	11.8
Fan Motor Quantity	/	2
Motor Power Input(max)	W	136
Motor Power Input(min)	W	18
Fan Speed (max)	rpm	850
Fan Speed (min)	rpm	300
Pressure Sensor 1	Bar	0-20
Pressure Sensor 2	Bar	0-45
Noise	dB(A)	58
Net Weight	kg	183
Gross Weight	kg	235
Net Dimension(L/W/H)	mm	1370×580×1525
Shippping Dimension(L/W/H)	mm	1480×690×1690

Advantages:

Under ideal weather conditions, heat pump water heaters produce three times the energy used to power the heat pump. In other words, heat pump water heaters use one-third of the electricity of conventional electric water heaters. CUB estimates that the average residential customer would save a lot of money per month using a MEIDIBAO heat pump water heater.

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 0

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 2

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 3

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 4

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 5

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 6

Household Dc Inverter Air To Water Source Heat Pump Dc Inverter Air To Water Source Heat Pump 7

Tag:

Place of Origin:	China
Brand Name:	Meidibao
Certification:	CE
Model Number:	M-D25ADH
Document:	Product Brochure PDF

Minimum Order Quantity:	6units
Price:	negotiate a price
Packaging Details:	Factory standard
Delivery Time:	25-30 days
Payment Terms:	T/T
Supply Ability:	20units a day
