Detail Information

Brand Name:	Meidibao	Fan Direction:	Side
Color:	Galvanized	Power:	380V/3N/50Hz
Operation Condition:	-30°C-40°C	Compressor:	Copeland
Highlight:	High Efficiency R290 Heat Pump , R290 Heating Cooling Heat Pump , R290 Hot Water Heater Heat Pump

Product Description

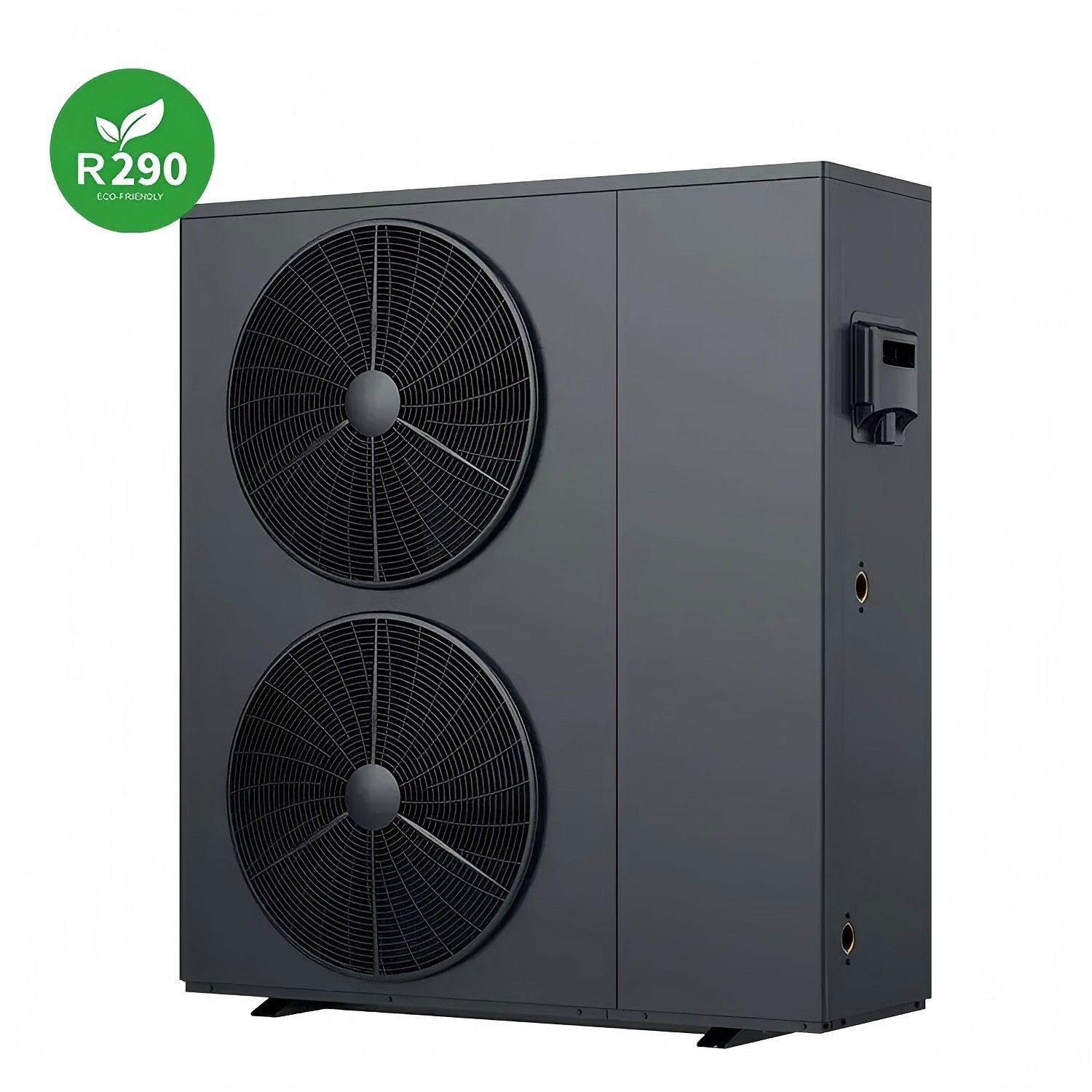

Meidibao High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump

The Meidibao R290 Air Source Heat Pump offers a high-efficiency, eco-friendly solution for bathroom hot water, space heating, and cooling. Designed for high temperature output, it’s ideal for residential and light commercial use.

Co-friendly R290 refrigerant – Low GWP & energy-saving
High temperature output – Suitable for bathrooms & sanitary hot water
All-in-one system – Heating, cooling, and domestic hot water (DHW)
Stable operation – Designed for year-round performance
Quiet & reliable – Advanced technology for user comfort

Why Choose Meidibao EVI Heat Pump?

Energy Saving
Multi-Functionality
Stable and Silent Operation
Environmentally Friendly
Smart Control Options
Wide Ambient Temperature Range
Durable and Low Maintenance
Easy Installation
Monoblock design

Specification:

Model		M-D25ADH
Heating Capacity Range	kW	10.8-36
Heating Capacity Range	BTU/h	36849-122832
Heating Power Input Range	kW	2.5-9.5
Cooling Capecity Range	kW	6.5-21.6
Cooling Capecity Range	BTU/h	22178-73699
Cooling Power Input Range	kW	2.1-8.8
Frequency	Hz	30-90
ErP level(35℃)	/	A++
ErP level(55℃)	/	A+
Power Supply	/	3N 380V 50HZ
Electric Heater	kW	/
Max.Running Current	A	21.8
Refrigerant Type	/	R410A
Refrigerant Quantity	kg	3.3
Compressor Brand	/	Mitsubishi Electric
Water Pump Brand	/	WiLo
Water Connection	/	1"
Water Flow	m³/h	6.2
Water Pressure Drop	kPa	10
Water Pump Head	m	11.8
Fan Motor Quantity	/	2
Motor Power Input(max)	W	136
Motor Power Input(min)	W	18
Fan Speed (max)	rpm	850
Fan Speed (min)	rpm	300
Pressure Sensor 1	Bar	0-20
Pressure Sensor 2	Bar	0-45
Noise	dB(A)	58
Net Weight	kg	183
Gross Weight	kg	235
Net Dimension(L/W/H)	mm	1370×580×1525
Shippping Dimension(L/W/H)	mm	1480×690×1690

Advantages:

Under ideal weather conditions, heat pump water heaters produce three times the energy used to power the heat pump. In other words, heat pump water heaters use one-third of the electricity of conventional electric water heaters. CUB estimates that the average residential customer would save a lot of money per month using a MEIDIBAO heat pump water heater.

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 0

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 2

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 3

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 4

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 5

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 6

High Efficiency Air Source Heat Pump Unit R290 Heating Cooling Hot Water Heater for Bathroom High Temperature Heat Pump 7

Tag:

Place of Origin:	China
Brand Name:	Meidibao
Certification:	CE
Model Number:	M-D25ADH
Document:	Product Brochure PDF

Minimum Order Quantity:	6units
Price:	negotiate a price
Packaging Details:	Factory standard
Delivery Time:	25-30 days
Payment Terms:	T/T
Supply Ability:	20units a day
