Place of Origin: | China |
---|---|
Brand Name: | Meidibao |
Certification: | CE |
Model Number: | MDB-10HG |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 3 Unit |
Price: | negotiate a price |
Packaging Details: | Factory standard packing |
Delivery Time: | Specific to the order based on regular products 5 to 7 days. Custom made for 30 days |
Payment Terms: | T/T |
Supply Ability: | 10 Unit/Units per Month |
Name: | Meidibao Heat Pump | Type: | Fixed |
---|---|---|---|
Origin: | Guangdong Province China | Working Temp: | 28-80℃ |
Dimension: | 1360*750*1360 | Weight: | 208 |

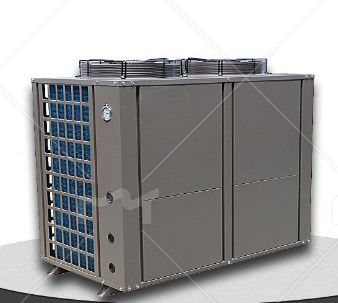

Meidibao Heat Pump Air Source Heat Pump Unit of Copeland Scroll Compressor R410A Heat Pump Air to Water
The Meidibao Air Source Heat Pump is an energy-efficient and high-performance solution for residential and commercial heating and hot water applications. Equipped with a Copeland Scroll Compressor and using R410A refrigerant, this unit ensures optimal energy efficiency, reliability, and eco-friendliness.
1.Modular design
2. flexible installation
3.convenient for expansion; The equipment has high reliability,
4.few faults and low maintenance costs.
Specification:
MODEL | unit | KFXRSG-52II |
Factory Model Number | MDB-15HG | |
Applicable Ambient Temperature | °C | 0-43 |
Power Supply Specification | / | 380V3N-50HZ |
Rated Heating Capacity | kw | 52 |
Nominal Input Power | kw | 14.4 |
Maximum Operating Current | A | 34.5 |
Hot Water Output | L/H | 570 |
Refrigerant | / | High-temperature dedicated type |
Air Outlet Mode | / | Push out the wind |
Protection Class | / | IPX4 |
Outlet Water Temperature | / | 28-60℃ |
Inlet and Outlet Port Type | MM | DN32 |
Noise | DB(A) | ≤55 |
Dimensions | MM | 1600*1100*1800 |
Weight | KG | 633 |
Advantages:
The modular design is convenient for installation and expansion, and there is no need for a dedicated computer room. The equipment has high reliability, few fauts and low maintenance costs. The power-off memory function ensures continuous operation and reduces the cost of manual management.
