40KW Side Out Custom Heat Pump with Easy Installation and Small Footprint for Efficient Heating

Brand Name:	meidibao
Model Number:	M-C40AAH
MOQ:	5SET
Price:	negotiate a price
Payment Terms:	T/T
Supply Ability:	20 set one day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Product Brochure PDF

Heat Exchanger:

Plate Heat Exchanger

Cop:

4.2

Refrigerant:

R410A

Power Supply:

220V/3PH/60Hz Or 50Hz

Compressor Type:

Scroll

Type:

Air Source Heat Pump

Name:

Custom Heat Pump

Packaging Details:

wooden frame or plywood box

Highlight:

Small Footprint Custom Heat Pump

Custom Heat Pump Easy Installation

40KW Heat Pump

Product Description

40KW Side Out Custom Heat Pump

The Meidibao 40KW side out custom heat pump offers easy installation with a small footprint, featuring a shell tube heat exchanger. This air source heat pump system operates continuously throughout the year, providing reliable hot water regardless of weather conditions.

Performance Benefits

Operating costs are significantly reduced compared to traditional systems: 67% less than gas water heaters, 75% less than electric water heaters, and 60% less than boilers. The unit features intelligent microcomputer control that automatically operates based on water temperature and usage patterns, eliminating the need for manual supervision.

Key Features

Compressor: Utilizes world-famous brand rotary or fully enclosed vortex compressors for low noise, minimal vibration, high efficiency, and extended service life. Multiple compressor units feature automatic unloading at partial load for energy savings and reduced startup frequency.
Water Side Heat Exchanger: High-efficiency shell tube or threaded casing heat exchanger with compact design, lightweight construction, easy disassembly, and convective heat conduction. Maximum working pressure of 45kgf/cm² with 10mm PE insulation to prevent energy loss.
Air Side Heat Exchanger: Integral hydrophilic finned inner threaded tube design with large windward area, high heat transfer efficiency, and corrosion resistance. Hydrophilic fins minimize condensation and frosting, ensuring reliable winter operation and effective defrosting.
Low Noise Fan: Domestic brand motor with axial impeller design, featuring anti-aging blades, balanced construction, and optimized working points for maximum efficiency and minimal noise.
Housing Materials: Galvanized steel external sheet metal with rust removal pretreatment, cleaning, drying, and electrostatic spraying for durable, attractive finish.

Technical Specifications

Product	Air Source Heat Pump
Model	M-C40AAH
Climatic Type	Normal
Power Supply	380V/3HP/60Hz
Rated Heating Capacity	40kW
Rated Power Input	9.5kW
Max Rated Current	52A
Refrigerant / Charge	R410/2800g×2
Rated Water Temperature	55℃
Max Hot Water Temperature	60℃
Working Temperature	0-43℃
Water Pipe Size	DN50
Noise	≤78dB(A)
Product Dimension	1350×850×1650mm
Net Weight	320kg

System Advantages

Heat pump form heating eliminates the need for boiler rooms, directly absorbs heat from air, reduces costs, ensures clean and safe operation, and avoids environmental pollution
Optional auxiliary electric heating available for locations with winter heat shortages
High efficiency and energy savings with reliable performance using world-famous brand components
Multi-system units feature two-stage energy regulation for partial load optimization and system protection

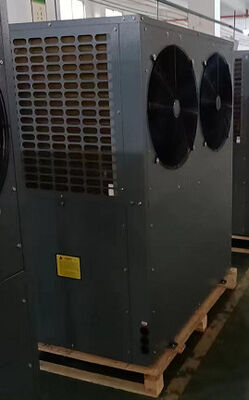

Product Images
