40HP Custom Air Source Heat Pump with Scroll Compressor 380V/50Hz or 60Hz for Energy Efficiency

Brand Name:	meidibao
Model Number:	MDB-400WD-1
MOQ:	1SET
Price:	negotiate a price
Payment Terms:	T/T
Supply Ability:	3 set one day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Product Brochure PDF

Cop:

3.8

Refrigerant:

R410A

Power Supply:

380V/3PH/60Hz Or 50Hz

Compressor Type:

Scroll

Type:

Air Source Heat Pump

Service:

OEM

Name:

Custom Heat Pump

Packaging Details:

Factory standard packing

Highlight:

OEM Custom Air Source Heat Pump

40HP Custom Air Source Heat Pump

ODM Custom Air Source Heat Pump

Product Description

OEM ODM 40HP Custom Air Source Heat Pump 380V/50HZ Or 60HZ

Product Overview

Meidibao air source heat pump system is powered by ambient air and operates around the clock, providing continuous hot water throughout the year regardless of weather conditions. The operating cost is 67% less than gas water heaters, 75% less than electric water heaters, and 60% less than boilers.

Key Features

Intelligent microcomputer control for automatic operation based on water temperature and usage
Manufacturer with expertise since 2005, equipped with excellent quality control
Available for OEM and ODM customization
High efficiency shell and tube design
Modern, attractive appearance

Technical Specifications

Product	Air source heat pump
Model	MDB-400WD-1
Climatic type	Normal
Power supply	380V～/60Hz
Rated heating capacity	152kW
Rated power input	38kW
Max Rated current	87.2A
Refrigerant	R410
Rated water temp.	55℃
Max hot water temp.	60℃
Working temp	0-43℃
Water pipe size	3"
Noise	≤82dB(A)
Product dimension	2200×2000×2300mm
Net weight	1020kg

Testing condition: ambient Dry/Wet Bulb Temp: 20℃ / 15℃; Water Inlet Outlet Temp: 15℃ / 55℃

Key Advantages

Heat pump form heating: No boiler room required, directly absorbs heat from air, reducing costs while ensuring clean, safe operation and avoiding environmental pollution
Optional auxiliary electric heating available for locations with winter heat shortages
High efficiency and energy saving with reliable performance using world-famous brand compressors and refrigeration components
Multi-system units feature two-stage energy regulation system, ideal for partial load conditions with enhanced energy savings and system protection

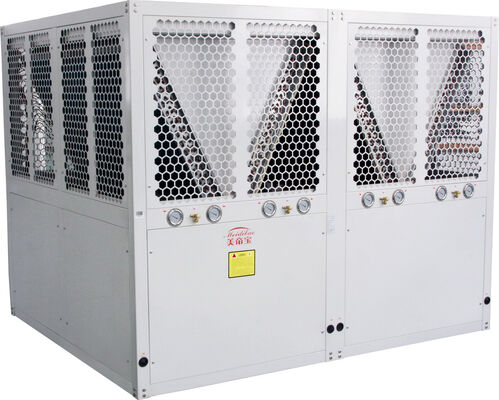

Product Images
