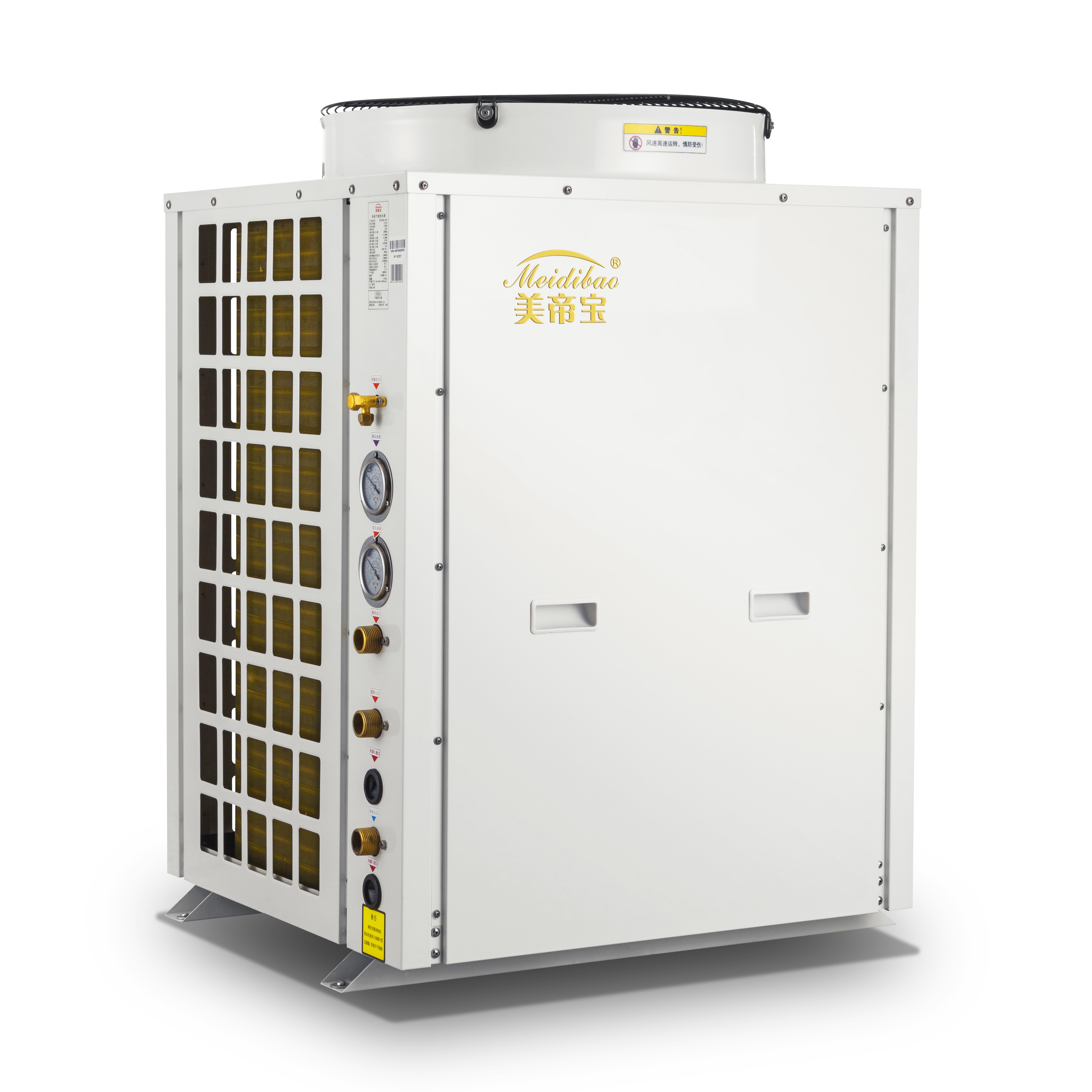

5HP Custom Heat Pump Direct Heating Heat Pump Galvanized Sheet Material

Basic Information
Place of Origin: China
Brand Name: Meidibao
Certification: CE
Model Number: KFYRS-18II-M1
Document: Product Brochure PDF
Minimum Order Quantity: 3units
Price: negotiate a price
Packaging Details: Factory standards
Delivery Time: Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Payment Terms: T/T
Supply Ability: 20 units one day
Detail Information
Material: Galvanized Sheet Heat Exchanger: Shell In Coil Or Tube In Tube
Waterproof Level: IP×4 Working Ambient Temperature: 0~43C
Advantage: Direct Heating Power Supply: 380V 3N~/50Hz
Name: Custom Heat Pump
Highlight:

5HP Custom Heat Pump

,

Custom Heat Pump Direct Heating


Product Description

5HP Custom heat pump Direct heating heat pump for customers who want direct heating



Product Description:

Meidibao air source heat pump system is powered by ambient air and operates around the clock: it provides continuous hot water thrughout the yeat and throughout the year,regardless of weather . The opreating cost is 67% less than that of gas water heater, 75% less than that of electric water heater and 60% less than that of boiler.Intelligent control: The unit is automatically controlled by a microcomputer, and automatically runs according to the water temperature of the water tank and the user's water use, without the need for special duty. Reasonable arrangement of low front



Feature:

1. Fast heating: Allows for quick attainment of the desired water temperature.

2. Stable performance: Ensures a consistent supply of heated water without significant fluctuations.

3. Easy to install and maintain: Has a straightforward installation procedure and requires relatively simple maintenance.

4. Versatile application: Can be used in different settings such as residential, commercial, or industrial areas for heating purposes.



Specification:

                                                                  20KW Direct heating heat pump
Model:   KFYRS-18II-M1
Power supply:   380V 3N~/50Hz
Rated heating capacity: kw 20
Rated power input: kw 5
Rated current: A 8.83
Max. power input: kw 6.5
Max. current input: A 11.48
Water heating capacity: L/h 429
Refrigerant/charging volume:   R410a/2600g
Max. exhaust pressure: MPa 3.0MPa
Min. suction pressure: MPa 0.05MPa
Rated hot water temp.: 55℃
Max. hot water temp.: 60℃
Water pipe size:   DN25
Noise level: dB(A) ≤65dB(A)
Anti-electric shock rate   I
Protection grade:   IP×4
Dimensions: mm 750×690×1060
Net weight: kg 150kg



Advantages:

Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.
