Monoblock Heat Pump
Created with Pixso.

1HP Monoblock Air Source Heat Pump High Efficiency R32 220V/60Hz with Galvanized Sheet or 304# Material

1HP Monoblock Air Source Heat Pump High Efficiency R32 220V/60Hz with Galvanized Sheet or 304# Material

Brand Name: Meidibao
Model Number: MDB-10WB
MOQ: 9 Units
Price: negotiate a price
Payment Terms: T/T
Supply Ability: 50 Units one day
Detail Information
Place of Origin:
China
Certification:
CE
Material:
Galvanized Sheet Or 304#
Heat Exchanger:
Shell In Coil
Working Ambient Temperature:
0~43C
Compressor Type:
Rotary
Bran Name:
MEIDIBAO
Refrigerant:
R32
Name:
Monoblock Heat Pump
Packaging Details:
Factory standards
Highlight:

1HP Monoblock Air Source Heat Pump

,

Monoblock Air Source Heat Pump High Efficiency

,

Monoblock Air Source Heat Pump 220V

Product Description
1HP Monoblock Air Source Heat Pump High Efficiency R32 1/220V/60HZ
Product Overview

The 1HP Monoblock Air Source Heat Pump is a high-efficiency R32 system operating at 220V/60Hz, designed to transfer heat from ambient air to provide both heating and cooling solutions.

This versatile system offers significant energy savings by utilizing renewable ambient air as a heat source, making it suitable for residential, commercial, and industrial applications with flexible outdoor installation options.

Key Features
  • Famous brand compressor for reliable performance
  • Extensible electrical heater control function
  • Easy installation with monoblock design
  • Low noise operation for minimal disturbance
  • 24/7 operation capability unaffected by weather conditions
  • Advanced green, environmental, safe and energy-saving hot water system
Technical Specifications
Product Air source heat pump
Model MDB-10WB
Climatic type Normal
Power supply 220V~/60Hz
Rated heating capacity 3.65kW
Rated power input 0.96kW
Max Rated current 5.7A
Refrigerant R32
Rated water temp. 55℃
Max hot water temp. 60℃
Working temp 0-43℃
Water pipe size G 3/4"
Noise ≤58dB(A)
Product dimension 855×305×540mm
Net weight 43kg
Testing condition: ambient Dry/Wet Bulb Temp: 20℃ / 15℃; Water Inlet Outlet Temp: 15℃ / 55℃
System Advantages
  • Heat pump form heating eliminates need for boiler rooms, reducing costs and environmental pollution
  • Direct air heat absorption for clean, safe operation
  • Optional auxiliary electric heating for areas with heat shortages
  • High efficiency and energy saving with reliable performance
  • World-famous brand rotary type or fully enclosed vortex compressors
  • Premium quality refrigeration components for maximum energy efficiency
  • Multi-system units feature two-stage energy regulation for partial load optimization
  • Energy-saving operation with effective protection against frequent system starts
Product Images

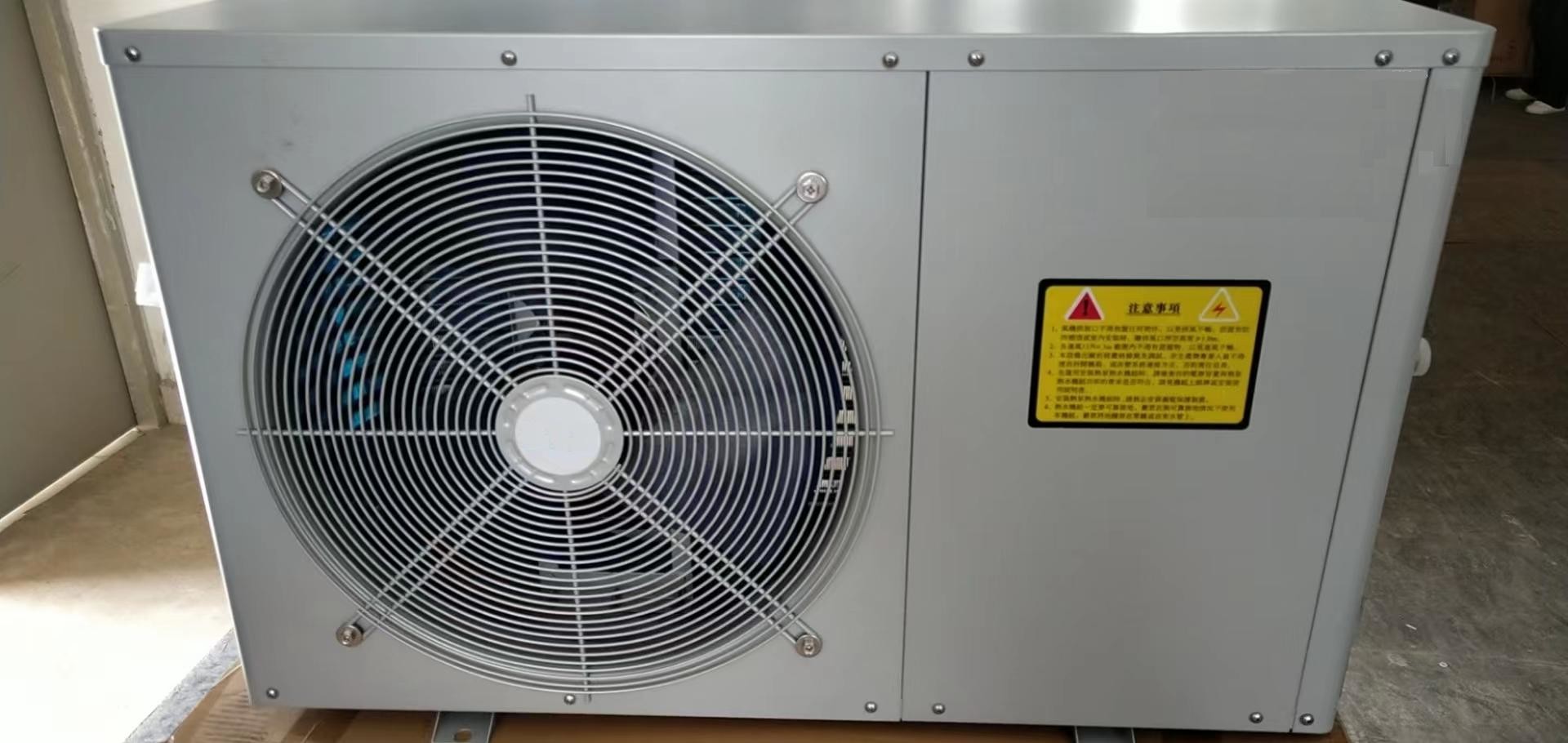

1HP Monoblock Air Source Heat Pump front view 1HP Monoblock Air Source Heat Pump side view 1HP Monoblock Air Source Heat Pump installation view 1HP Monoblock Air Source Heat Pump technical details
