74KW Heating Capacity Multifunction Monoblock Heat Pump with Compact Design and Multiple Protections

74KW Heating Capacity Multifunction Monoblock Heat Pump with Compact Design and Multiple Protections

Brand Name:	meidibao
Model Number:	KFXKS-70II-M2
MOQ:	1 units
Price:	negotiate a price
Payment Terms:	T/T
Supply Ability:	5 units one day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Product Brochure PDF

Heat Exchanger:

Plate Heat Exchanger

Power Supply:

380V/3PH /60Hz

Compressor Type:

Copeland

Type:

Multifunction

Brand Name:

MEIDIBAO Or OEM

Place Of Origin:

Guangdong China

Name:

Monoblock Heat Pump

Packaging Details:

Factory standard packing

Highlight:

20HP Monoblock Heat Pump

Multifunction Monoblock Heat Pump

CE Monobloc Heat Pump

Product Description

Multifunction 20HP Monoblock Heat Pump Hot Water Air Conditioning Heating

20HP Monoblock Heat Pump hot water + air-conditioning + heating

Product Description

The Multifunction heat pump offers multiple operating modes:

Single hot water mode
Single air-conditioning mode
Single heating mode
Hot water + air-conditioning mode
Hot water + heating mode

Key Features

Compact Design
Versatile Installation Options
Enhanced Air Distribution
Multiple Protection Systems

Technical Specifications

Product	Multifunction Air Source Heat Pump
Model	KFXKS-70II-M2
Climatic Type	Normal
Power Supply	380V～/60Hz
Rated Heating Capacity	74kW
Rated Power Input	19.47kW
Rated Cooling Capacity	40KW
Rated Cooling Power	20KW
Max Rated Current	45.9A
Refrigerant	R410A/2800g*4
Working Temperature	-7-43℃
Water Pipe Size	DN65
Noise Level	≤72dB(A)
Product Dimension	200011001960mm
Net Weight	580kg

Heating test conditions: ambient Dry/Wet Bulb Temp: 20℃ / 15℃; Water Inlet Outlet Temp: 15℃ / 55℃
Cooling test conditions: ambient Dry/Wet Bulb Temp: 35℃ / 24℃; Water Inlet Outlet Temp: 12℃ / 7℃

Key Advantages

High power output (74KW) for efficient heating and cooling of larger spaces
Significant energy savings compared to traditional systems
Multifunctionality provides hot water in addition to temperature control
Quiet operation minimizes noise disturbance
Environmentally friendly with lower electricity consumption and carbon footprint
Advanced control systems for precise temperature regulation
Durable construction with low maintenance requirements

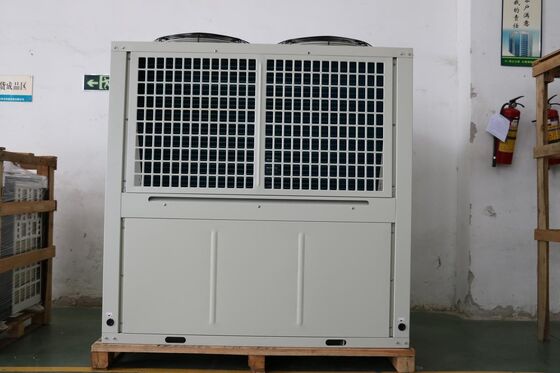

Product Images
