| Place of Origin: | China |
|---|---|
| Brand Name: | meidibao |
| Certification: | CE |
| Model Number: | KFXKS-70II-M2 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 units |
| Price: | negotiate a price |
| Packaging Details: | Factory standard packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 5 units one day |
| Heat Exchanger: | Plate Heat Exchanger | Power Supply: | 380V/3PH /60Hz |
|---|---|---|---|
| Compressor Type: | Copeland | Type: | Multifunction |
| Brand Name: | MEIDIBAO Or OEM | Place Of Origin: | Guangdong China |
| Name: | Monoblock Heat Pump | ||
| Highlight: | 20HP Monoblock Heat Pump,Multifunction Monoblock Heat Pump,CE Monobloc Heat Pump |
||

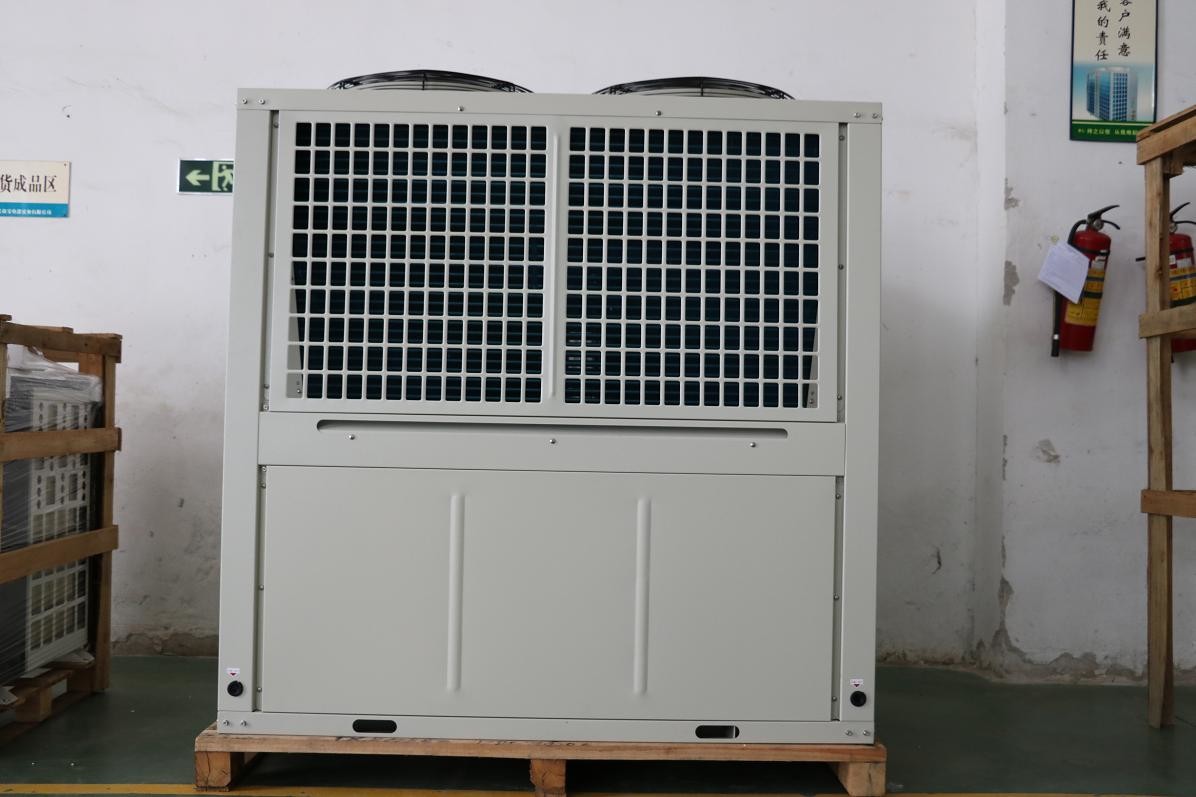

20HP Monoblock Heat Pump hot water+air-conditioning+heating
Product Description:
The Multifunction heat pump Function mode:
1. single hot water,
2. single air-conditioning
3. single heating
4. hot water + air-conditioning
5. hot water + heating
Feature:
1. Compact Design
2. Versatile Installation Options
3. Enhanced Air Distribution
4. Multiple protections
Specification:
| Product | Multifunction Air source heat pump |
| Model | KFXKS-70II-M2 |
| Climatic type | Normal |
| Power supply | 380V~/60Hz |
| Rated heating capacity | 74kW |
| Rated power input | 19.47kW |
| Rated cooling capacity | 40KW |
| Rated cooling power | 20KW |
| Max Rated current | 45.9A |
| Refrigerant | R410A/2800g*4 |
| working temp | -7-43℃ |
| water pipe size | DN65 |
| Noise | ≤72dB(A) |
| Product dimension | 2000*1100*1960mm |
| Net weight | 580kg |
| Heating test conditions:ambient Dry/Wet Bulb Temp: 20℃ / 15℃ ;Water Inlet Outlet Temp: 15℃ / 55℃ | |
| cooling test conditions:ambient Dry/Wet Bulb Temp: 35℃ / 24℃ ;Water Inlet Outlet Temp: 12℃ / 7℃ | |
Advantages:
![]()
![]()
![]()
![]()
![]()
