Place of Origin: | China |
---|---|
Brand Name: | Meidibao |
Certification: | CE |
Model Number: | KFYRS-18II-M1 |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 3units |
Price: | negotiate a price |
Packaging Details: | Factory standards |
Delivery Time: | Specific to the order based on regular products 5 to 7 days. Custom made for 30 days |
Payment Terms: | T/T |
Supply Ability: | 20 units one day |
Name: | Air Souce Heat Pump | Function: | Heating And Cooling |
---|---|---|---|
Heating Capacity: | 20KW | Material: | Galvanized Sheet |
Heat Exchanger: | Shell In Coil Or Tube In Tube | Waterproof Level: | IP×4 |

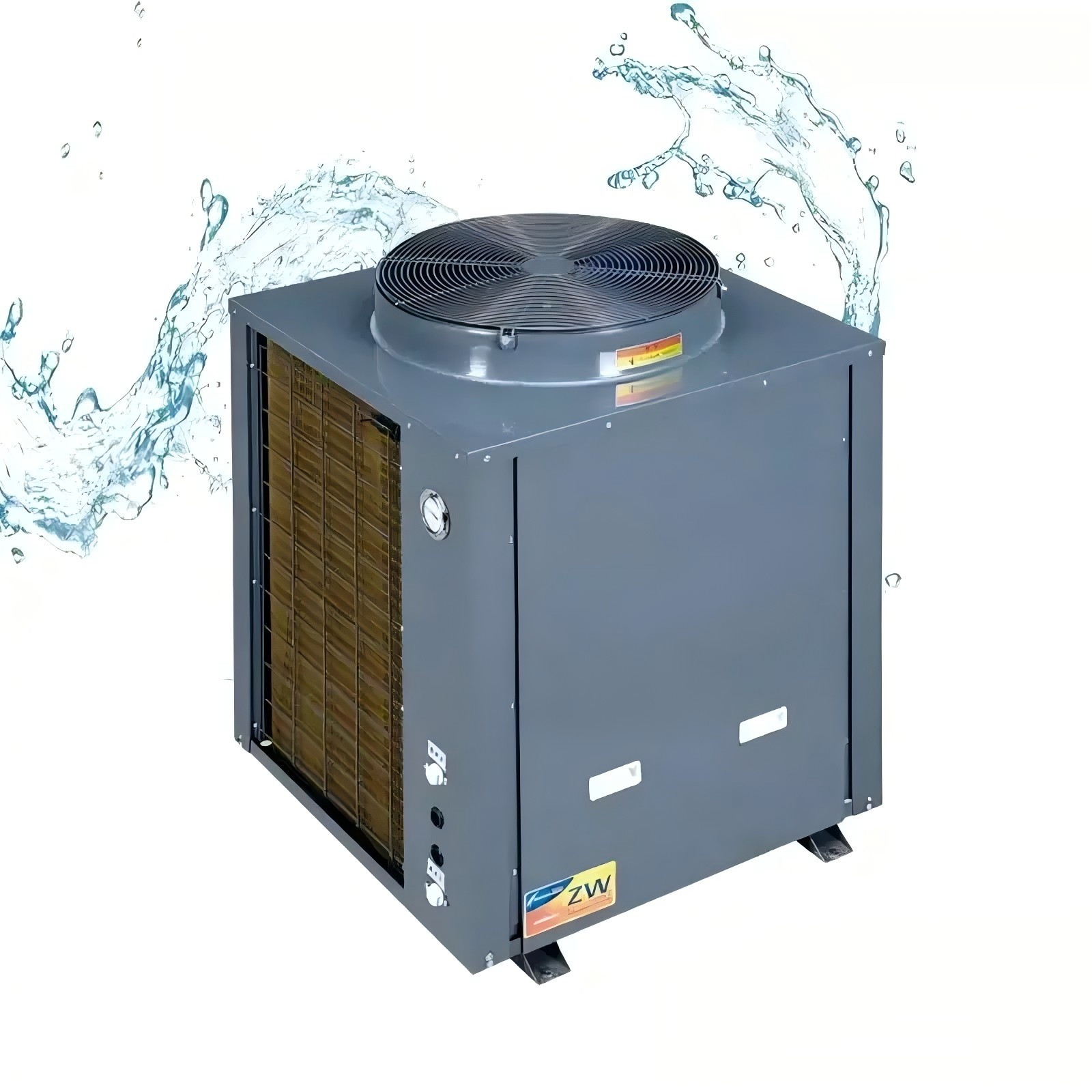

Meidibao High Efficiency Air to Water Heat Pump Commercial Air Source Heat Pump
Product Description:
The Meidibao Air Source Heat Pump is a next-generation household water heating solution designed with energy efficiency and environmental sustainability in mind. By using renewable energy from the air, this electric water heater delivers reliable hot water for daily domestic use—while significantly reducing electricity consumption compared to traditional electric heaters.
Feature:
1. High Efficiency Performance
2. Eco-Friendly Refrigerant (R410A or R32 optional)
3. All-in-One Design
4. Low Operating Noise
5. Smart Control Options
6. Durable Construction
Specification:
20KW Direct heating heat pump | ||
Model: | KFYRS-18II-M1 | |
Power supply: | 380V 3N~/50Hz | |
Rated heating capacity: | kw | 20 |
Rated power input: | kw | 5 |
Rated current: | A | 8.83 |
Max. power input: | kw | 6.5 |
Max. current input: | A | 11.48 |
Water heating capacity: | L/h | 429 |
Refrigerant/charging volume: | R410a/2600g | |
Max. exhaust pressure: | MPa | 3.0MPa |
Min. suction pressure: | MPa | 0.05MPa |
Rated hot water temp.: | ℃ | 55℃ |
Max. hot water temp.: | ℃ | 60℃ |
Water pipe size: | DN25 | |
Noise level: | dB(A) | ≤65dB(A) |
Anti-electric shock rate | I | |
Protection grade: | IP×4 | |
Dimensions: | mm | 750×690×1060 |
Net weight: | kg | 150kg |
1.Energy Efficient
2.Eco-Friendly
3.Stable and Reliable
4.Quiet Operation
5.Safe and Convenient
6.Durable Construction
7.All-Season Functionality
