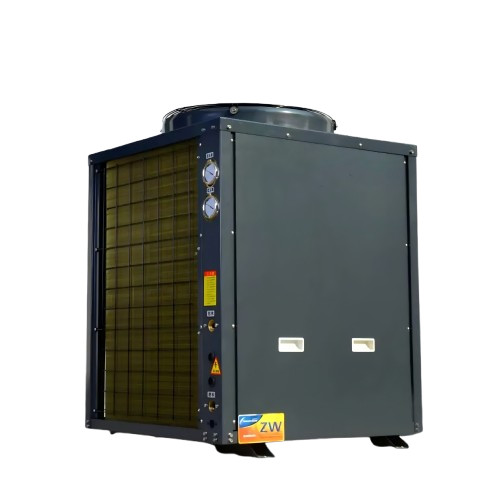

Meidibao Commercial High Efficiency Air Source Heat Pump Water Heater

Basic Information
Place of Origin: China
Brand Name: Meidibao
Certification: CE CQC
Model Number: M-D20AAH
Document: Product Brochure PDF
Minimum Order Quantity: 3SET
Price: negotiate a price
Packaging Details: wooden frame or plywood box
Delivery Time: Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Payment Terms: T/T
Supply Ability: 30 SET one day
Detail Information
Material: Galvanized Sheet Name: Commercial Air Source Heat Pump
Heat Exchanger: High Efficiency Shell In Tube Use: Hot Water
Waterproof Level: IP×4 Working Ambient Temperature: 0~43C
COP: 3.8~4.6

Product Description

20kw Commercial Air Source Heat Pump High Efficiency For Residential Accommodation



Product Description:



The Meidibao Commercial Air Source Heat Pump Water Heater is designed for high-demand hot water applications such as hotels, hospitals, schools, and apartment buildings. Engineered with advanced heat pump technology, it extracts heat from ambient air to provide a stable, energy-efficient, and eco-friendly hot water supply—all while reducing operational costs.



Feature:

1. High Efficiency & Energy Saving

2. Eco-Friendly

3. Stable Performance

4. Smart Control Panel



Specification:

20kw Commercial Air Source Heat Pump
Model   M-D20AAH
Climate type   Normal
Power supply   380V 3N~/50Hz
Rated heating capacity kw 20
Rated power input kw 5
Rated current A 8.83
Max. power input kw 6.5
Max. current input A 11.48
Water heating capacity L/h 429
Refrigerant/charging volume   R410a/2600g
Max. exhaust pressure MPa 3.0MPa
Min. suction pressure MPa 0.05MPa
Rated hot water temp. 55℃
Max. hot water temp. 60℃
Water pipe size   DN25
Noise level dB(A) ≤65dB(A)
Anti-electric shock rate   I
Protection grade   IP×4
Dimensions mm 750×690×1060
Net weight kg 110kg



Advantages:

Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.

Meidibao Commercial High Efficiency Air Source Heat Pump Water Heater 0
