Place of Origin: | China |
---|---|
Brand Name: | Meidibao |
Certification: | CE |
Model Number: | MDB-05HG |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 3SET |
Price: | negotiate a price |
Packaging Details: | wooden frame or plywood box |
Delivery Time: | Specific to the order based on regular products 5 to 7 days. Custom made for 30 days |
Payment Terms: | T/T |
Supply Ability: | 30 SET one day |
Heat Exchanger: | High Efficiency Shell In Tube | Name: | High-Temperature Heat Pump |
---|---|---|---|
Material: | Galvanized Sheet | Use: | Hot Water |
Diemension: | 890*690*1080 | Weight: | 115 |
High-Temperature Heat Pumps: Safety Assurance & Stable Operation
Product Description:

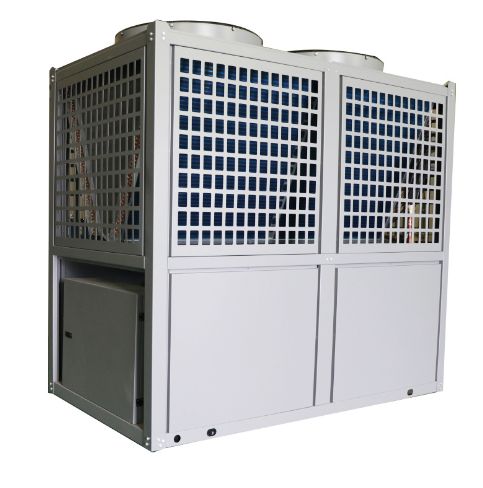

The Meidibao Air Source Heat Pump is designed to efficiently supply room temperature hot water using advanced air-to-water technology. With low power consumption and stable performance, it is ideal for residential or light commercial use. This system absorbs heat from the ambient air and transfers it into water, significantly reducing energy costs while ensuring a consistent hot water supply.
Feature:
Specification:
MODEL | unit | KFXRSG-17I |
Factory Model Number | MDB-05HG | |
Applicable Ambient Temperature | °C | |
Power Supply Specification | / | 220V 1N-50HZ |
Rated Heating Capacity | kw | 17 |
Nominal Input Power | kw | 4.8 |
Maximum Operating Current | A | 11.5 |
Hot Water Output | L/H | 190 |
Refrigerant | / | High-temperature dedicated type |
Air Outlet Mode | / | Push out the wind |
Protection Class | / | IPX4 |
Outlet Water Temperature | / | 28-60℃ |
Inlet and Outlet Port Type | MM | DN25 |
Noise | DB(A) | ≤55 |
Dimensions | MM | 820*690*1080 |
Weight | KG | 134 |
Advantages:
The design of separating water and electricity eliminates the risk of electric leakage. It uses environmentally friendly refrigerants with a low GWP value and does not damage the ozone layer. There is no combustion process, no waste gas or residue is produced, which complies with green production standards and reduces environmental pollution.
