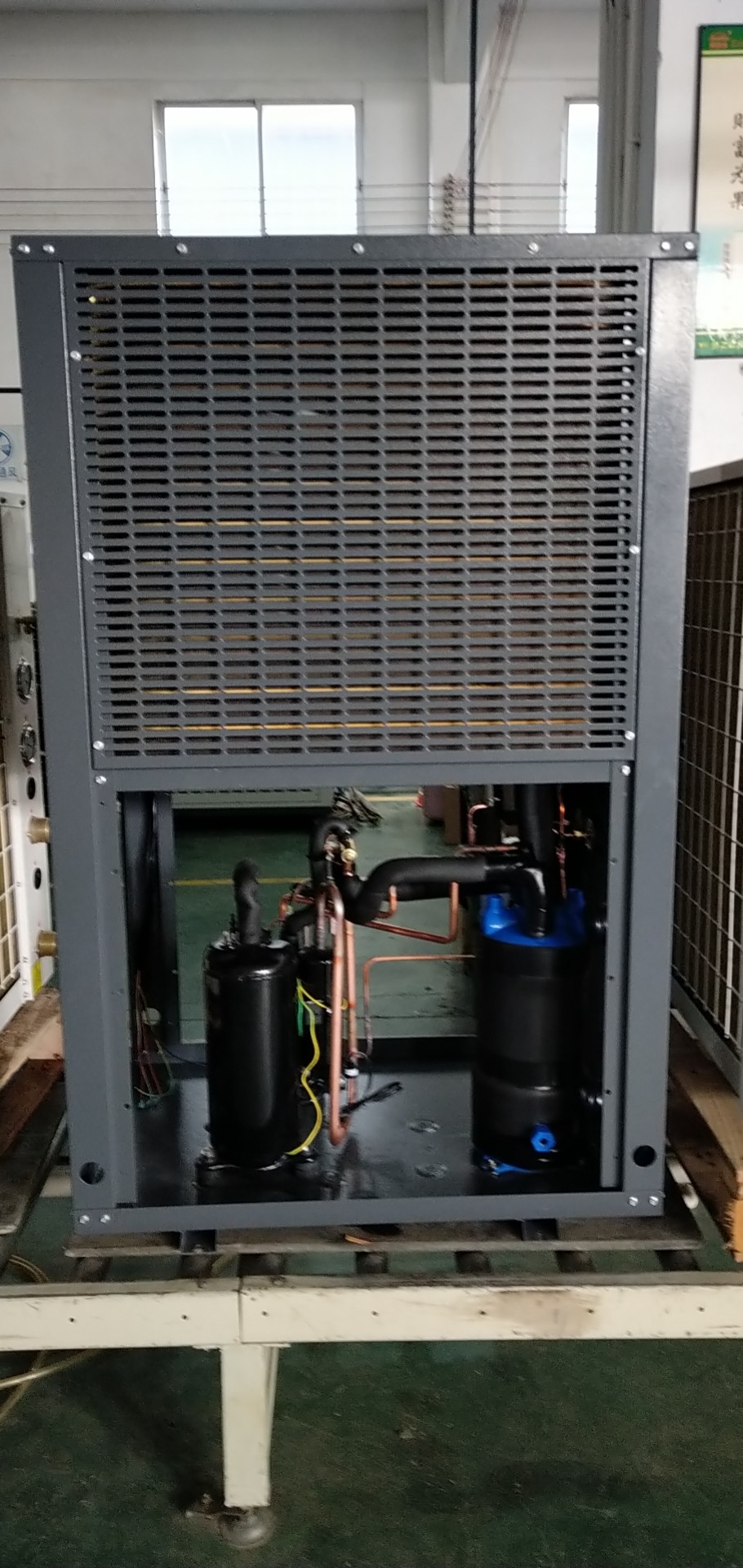

5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ

Basic Information
Place of Origin: China
Brand Name: meidibao
Certification: CE
Model Number: M-C22AAS
Document: Product Brochure PDF
Minimum Order Quantity: 6 unit
Packaging Details: wooden frame or plywood box
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 20 units one day
Detail Information
Heat Exchanger: Titanium Working Ambient Temperature: 0~43C
Power Supply: 380V-415V/3/50HZ Refrigerant: R410
Type: Air Source Heat Pump Color: White,Black,OEM
Name: Swimming Pool Air Source Heat Pump
Highlight:

5HP Swimming Pool Air Source Heat Pump

,

Swimming Pool Air Source Heat Pump Side Discharge

,

Side Discharge Heat Pump Swimming Pool


Product Description

5HP swimming pool air soure heat pump side discharge 3/380V/50HZ or 60HZ



Product Description:

Meidibao Swimming Pool  Heat Pump with silence character makes you calm down and relax when enjoy the comfortable swimming.

In order to facilitate the management and maintenance of the machine,Meidibao's latest intelligent remote control technology is available for this unit. Besides, its heating speed is faster, which greatly saves energy and enables you to enjoy swimming without waiting for a long time.



Feature:

Super Low Noise: Silencer cotton for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve of famous brands welding protection

Energy Saving: 30mm thickness foam pipe for insulation to prevent energy lost



Specification:



Product swimming pool heat pump
Model M-C22AAS
Climatic type Normal
Power supply 380V~/50Hz
Rated heating capacity 22kW
Rated power input 4.4kW
Max Rated current 10.1A
Refrigerant / Charge R410/3200
Rated water temp. 28℃
Max hot water temp. 45℃
water pipe size DN50
Noise ≤65dB(A)
Anti-electric shock rate I
Protection grade IP×4
Product dimension 862*602*1388.3mm
Net weight 130kg


Advantages:

Environmentally friendly: Produces fewer greenhouse gas emissions.
Consistent water temperature: Maintains a stable and comfortable water temperature for swimming.
All-season use: Allows the pool to be used even in colder weather.
Fast heating: Can quickly raise the water temperature.
Easy installation: Comparatively simpler to install compared to some other systems.
Low noise level: Does not create excessive noise during operation.
Long lifespan: With proper maintenance, can last for many years.
Versatile application: Suitable for various sizes and types of swimming pools.
Cost-effective in the long run: Although the initial investment may be significant, the savings in energy over time can make it economically beneficial.

5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ 0



5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ 1

5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ 2

5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ 3

5HP Swimming Pool Air Source Heat Pump Side Discharge 3/380V/50HZ Or 60HZ 4
