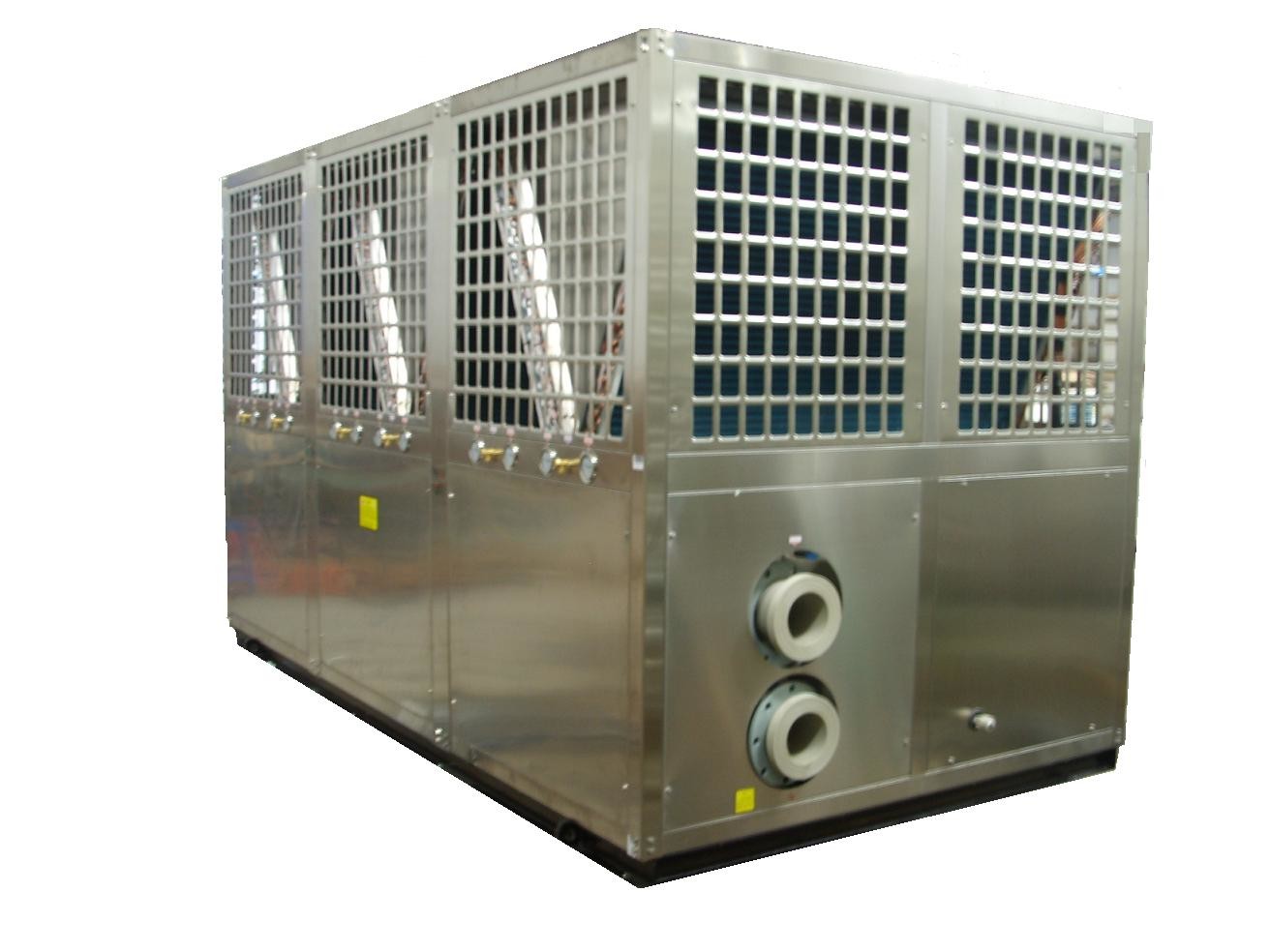

60P Environmentally Friendly Heat Pump 3N/380V/60Hz Air Source Pump For Swimming Pool

Basic Information
Place of Origin: China
Brand Name: meidibao
Certification: CE
Model Number: M-D222AAS
Document: Product Brochure PDF
Minimum Order Quantity: 1unit
Packaging Details: wooden frame or plywood box
Delivery Time: 25-30days
Payment Terms: T/T
Supply Ability: 3untis one day
Detail Information
Material: 304 Stainless Steel Heat Exchanger: 304 Shell Titanium Tube
Working Ambient Temperature: 0~43C Heating: 757464BTU
Refrigerant: R410 Body Size: 3600×2000×2300
Name: Swimming Pool Air Source Heat Pump
Highlight:

60P Environmentally Friendly Heat Pump

,

Environmentally Friendly Heat Pump 3N

,

60Hz Air Source Pump For Swimming Pool


Product Description

60P swimming pool air soure heat pump 3N/380V/60Hz Power supply



Product Description:

A high-powered pool heat pump provides efficient heating for the swimming pool water, allowing for comfortable swimming temperatures even in cooler weather. This helps extend the swimming season and increases the usability of the pool.
It is energy-efficient compared to traditional heating methods, reducing operating costs over time.
The air source technology makes it environmentally friendly as it consumes less electricity and produces fewer greenhouse gas emissions.
These heat pumps are also relatively easy to install and maintain. They have a long lifespan when properly maintained, providing reliable performance for many years.



Feature:

1. 304 shell titanium tube

60P Environmentally Friendly Heat Pump 3N/380V/60Hz Air Source Pump For Swimming Pool 0

60P Environmentally Friendly Heat Pump 3N/380V/60Hz Air Source Pump For Swimming Pool 1
2. 304 stainless steel body, anti-corrosion ability is stronger, placed in the sea strong corrosive places can be long life
3. use 304 shell titanium tube The highest water temperature can reach 60 degrees
4. Easy maintenance access




Specification:

Product swimming pool heat pump
Model M-D222AAS
Climatic type Normal
Power supply 380V~/60Hz
Rated heating capacity 222kW
Rated power input 60kW
Max Rated current 137A
Refrigerant / Charge R410/5400g×6
Rated water temp. 35℃
Max hot water temp. 60℃
water pipe size 3"
Noise ≤86dB(A)
Anti-electric shock rate I
Protection grade IP×4
Product dimension 3600*200*2300mm
Net weight 1500kg
  • Sample Project :

60P Environmentally Friendly Heat Pump 3N/380V/60Hz Air Source Pump For Swimming Pool 2

60P Environmentally Friendly Heat Pump 3N/380V/60Hz Air Source Pump For Swimming Pool 3
