10KW Commercial Air Source Heat Pump Water Heater White Top Outlet

Basic Information
Place of Origin: China
Brand Name: Meidibao
Certification: CE
Model Number: KFXRS-9I-M5
Document: Product Brochure PDF
Minimum Order Quantity: 3units
Price: negotiate a price
Packaging Details: Factory standards
Delivery Time: Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Payment Terms: T/T
Supply Ability: 20 units one day
Detail Information
Rated Heating Capacity: 10KW Waterproof Level: IP×4
Working Ambient Temperature: 0~43C Advantage: Direct Heating
Power Supply: 380V 3N~/50Hz Name: Custom Heat Pump
Highlight:

10KW Commercial Air Source Heat Pump

,

Waterproof Commercial Air Source Heat Pump


Product Description

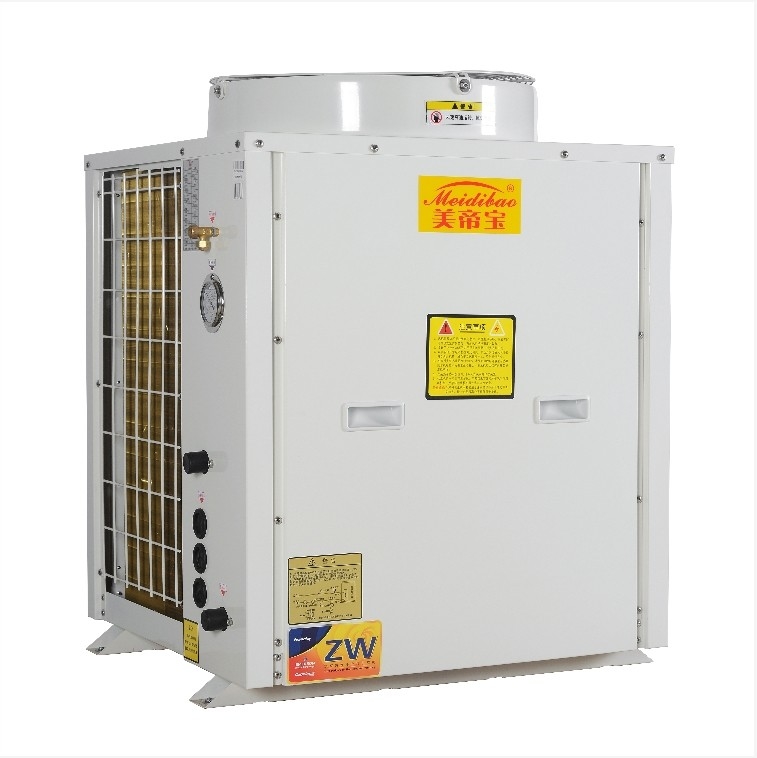

10KW Commercial Air Source Heat Pump water heater white Top Outlet



Product Description:

The 10KW Commercial Air Source Heat Pump is a powerful and energy-efficient solution for large-scale water heating applications. With an impressive 10KW heating capacity, it is designed to meet the demands of commercial establishments such as hotels, schools, gyms, and industrial facilities



Feature:

1.Energy Efficiency: Utilizing air-source heat pump technology, this unit harnesses ambient air to generate hot water, significantly reducing energy consumption compared to traditional water heating methods.

2.Top Outlet Design: The sleek, white unit is equipped with a convenient top outlet, ensuring space-saving installation and optimal water distribution.

3.Durable & Reliable: Built to last, this heat pump features high-quality components that ensure long-term reliability and performance, even in demanding environments.

4.Eco-Friendly: With its low carbon emissions, the unit supports sustainable operations, helping businesses reduce their environmental footprint.

5.Quiet Operation: Despite its high power, the system operates with minimal noise, providing a comfortable and unobtrusive environment.



Specification:

                                                                  10KW Air Source Heat Pump
Model:   KFXRS-9I-M5
Power supply:   220V~/50Hz
Rated heating capacity: kw 10
Rated power input: kw 2.5
Rated current: A 11.3
Max. power input: kw 3.25
Max. current input: A 14.7
Water heating capacity: L/h 214
Refrigerant/charging volume:   R22/1400g
Max. exhaust pressure: MPa 3.0MPa
Min. suction pressure: MPa 0.05MPa
Rated hot water temp.: 55℃
Max. hot water temp.: 60℃
Water pipe size:   DN25
Noise level: dB(A) ≤65dB(A)
Anti-electric shock rate   I
Protection grade:   IP×4
Dimensions: mm 710×670×900
Net weight: kg 100kg



Advantages:

Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.

10KW Commercial Air Source Heat Pump Water Heater White Top Outlet 0

10KW Commercial Air Source Heat Pump Water Heater White Top Outlet 1

10KW Commercial Air Source Heat Pump Water Heater White Top Outlet 2
