| Place of Origin: | China |
|---|---|
| Brand Name: | Meidibao |
| Certification: | CE |
| Model Number: | KFXRS-9I-M5 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 3units |
| Price: | negotiate a price |
| Packaging Details: | Factory standards |
| Delivery Time: | Specific to the order based on regular products 5 to 7 days. Custom made for 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 units one day |
| Waterproof Level: | IP×4 | Name: | Swimming Pool Heater |
|---|---|---|---|
| Rated Heating Capacity: | 10KW | Working Ambient Temperature: | 0~43C |
| Power Supply: | 380V 3N~/50Hz | Advantage: | Direct Heating |
| Highlight: | Low Noise Swimming Pool Heat Pump,Air Source Swimming Pool Heat Pump,10kw Swimming Pool Heat Pump |
||

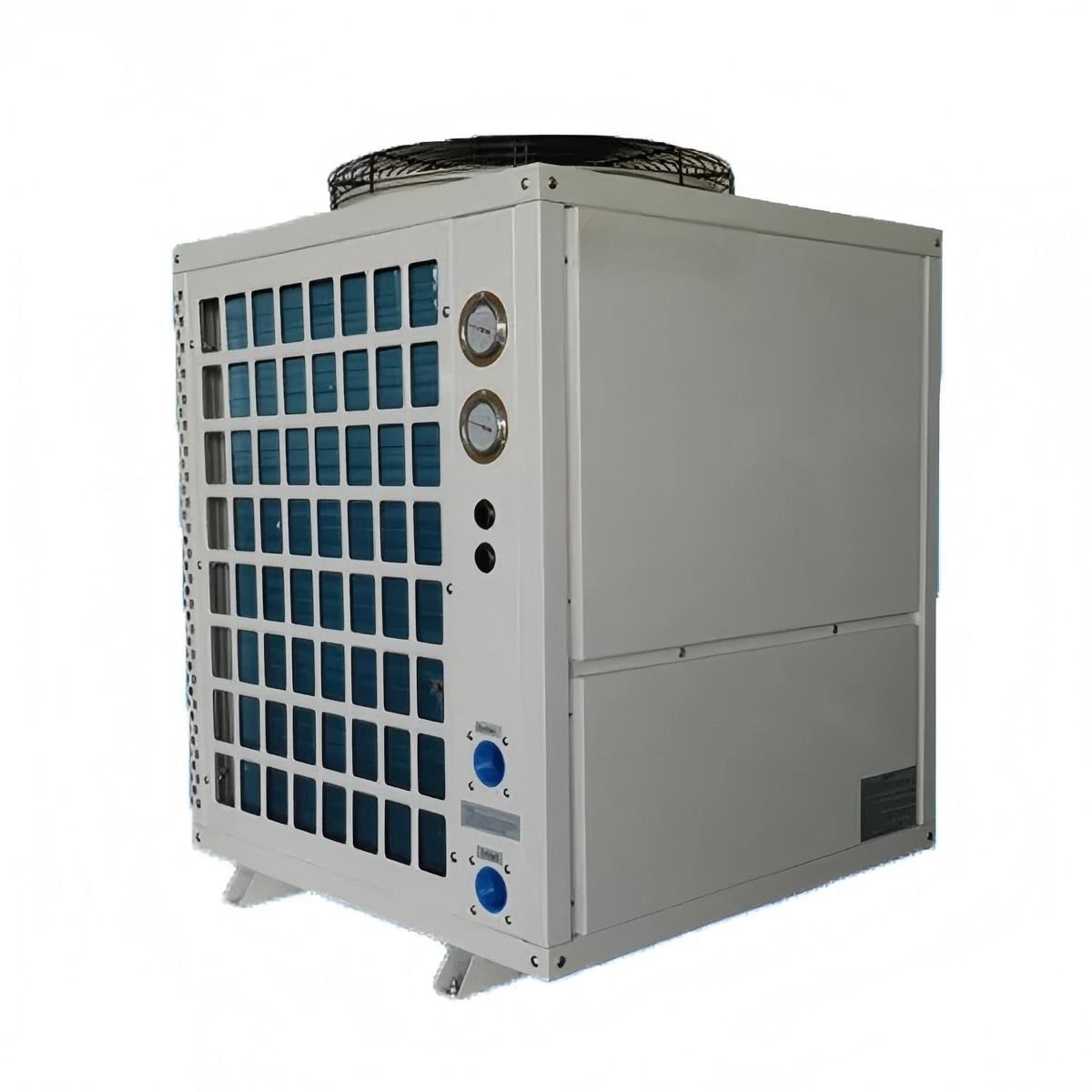

3HP Commercial Swimming Pool Air Source Heat Pump White Color Top Outlet
Product Description:
The 10kW Air Source Swimming Pool Heat Pump is designed to provide energy-efficient heating for residential and small commercial swimming pools. Using advanced air-to-water heat pump technology, it efficiently transfers heat from the surrounding air to warm your pool water while consuming minimal electricity.
Energy Efficient
Low Noise Operation
Durable & Corrosion-Resistant
Wide Temperature Operation
Smart Control System
Eco-Friendly Refrigerant
Specification:
| 10KW Air Source Heat Pump | ||
| Model: | KFXRS-9I-M5 | |
| Power supply: | 220V~/50Hz | |
| Rated heating capacity: | kw | 10 |
| Rated power input: | kw | 2.5 |
| Rated current: | A | 11.3 |
| Max. power input: | kw | 3.25 |
| Max. current input: | A | 14.7 |
| Water heating capacity: | L/h | 214 |
| Refrigerant/charging volume: | R22/1400g | |
| Max. exhaust pressure: | MPa | 3.0MPa |
| Min. suction pressure: | MPa | 0.05MPa |
| Rated hot water temp.: | ℃ | 55℃ |
| Max. hot water temp.: | ℃ | 60℃ |
| Water pipe size: | DN25 | |
| Noise level: | dB(A) | ≤65dB(A) |
| Anti-electric shock rate | I | |
| Protection grade: | IP×4 | |
| Dimensions: | mm | 710×670×900 |
| Net weight: | kg | 100kg |
Cost-Effective & Energy Saving – Reduces electricity consumption by utilizing ambient air heat.
Long Lifespan – High-quality components ensure durability and stable performance.
Eco-Friendly Heating – Uses clean energy with low carbon emissions.
Simple Installation & Maintenance – Plug-and-play design with minimal maintenance required.
![]()
![]()
![]()
