| Place of Origin: | China |
|---|---|
| Brand Name: | Meidibao |
| Certification: | CE CQC |
| Model Number: | M-D20AAH |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 3SET |
| Price: | negotiate a price |
| Packaging Details: | wooden frame or plywood box |
| Delivery Time: | Specific to the order based on regular products 5 to 7 days. Custom made for 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 30 SET one day |
| Material: | Galvanized Sheet | Name: | Commercial Air Source Heat Pump |
|---|---|---|---|
| Heat Exchanger: | High Efficiency Shell In Tube | Use: | Hot Water |
| Waterproof Level: | IP×4 | Working Ambient Temperature: | 0~43C |
| COP: | 3.8~4.6 | ||
| Highlight: | High Efficiency Air Source Heat Pump,Commercial Air Source Heat Pump |
||

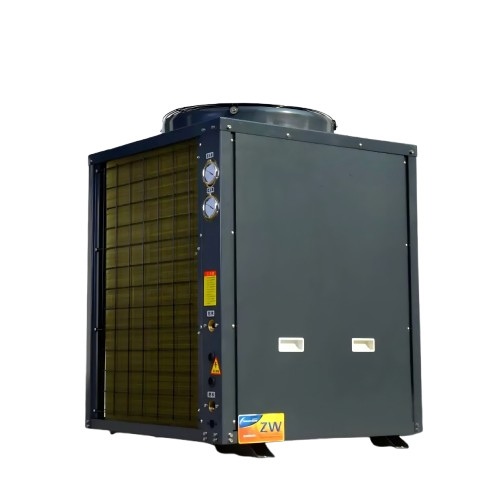

20kw Commercial Air Source Heat Pump High Efficiency For Residential Accommodation
Product Description:
The Meidibao Commercial Air Source Heat Pump Water Heater is designed for high-demand hot water applications such as hotels, hospitals, schools, and apartment buildings. Engineered with advanced heat pump technology, it extracts heat from ambient air to provide a stable, energy-efficient, and eco-friendly hot water supply—all while reducing operational costs.
Feature:
1. High Efficiency & Energy Saving
2. Eco-Friendly
3. Stable Performance
4. Smart Control Panel
Specification:
| 20kw Commercial Air Source Heat Pump | ||
| Model | M-D20AAH | |
| Climate type | Normal | |
| Power supply | 380V 3N~/50Hz | |
| Rated heating capacity | kw | 20 |
| Rated power input | kw | 5 |
| Rated current | A | 8.83 |
| Max. power input | kw | 6.5 |
| Max. current input | A | 11.48 |
| Water heating capacity | L/h | 429 |
| Refrigerant/charging volume | R410a/2600g | |
| Max. exhaust pressure | MPa | 3.0MPa |
| Min. suction pressure | MPa | 0.05MPa |
| Rated hot water temp. | ℃ | 55℃ |
| Max. hot water temp. | ℃ | 60℃ |
| Water pipe size | DN25 | |
| Noise level | dB(A) | ≤65dB(A) |
| Anti-electric shock rate | I | |
| Protection grade | IP×4 | |
| Dimensions | mm | 750×690×1060 |
| Net weight | kg | 110kg |
Advantages:
Heat pump form heating: no need to build a boiler room, directly from the air heat absorption, reduce the cost, clean and safety, avoid environmental pollution; For some winter by heat pump heat shortage places, it can also choose auxiliary electric heating to meet the heat requirements.High efficiency, energy saving, reliable performance: choose the world famous brand rotary type or fully enclosed vortex compressor and the world famous brand high-quality refrigeration components, to ensure that the whole machine plays the highest energy efficiency. The multi-system unit adopts a two-stage energy regulation system, which is especially suitable for partial load, more energy saving and can effectively protect the frequent start of the system.
![]()
