Advanced Technologies and Professional Components of High-Temperature Heat Pumps

Basic Information
Place of Origin: China
Brand Name: Meidibao
Certification: CE
Model Number: MDB-03HG
Document: Product Brochure PDF
Minimum Order Quantity: 3SET
Price: negotiate a price
Packaging Details: wooden frame or plywood box
Delivery Time: Specific to the order based on regular products 5 to 7 days. Custom made for 30 days
Payment Terms: T/T
Supply Ability: 30 SET one day
Detail Information
Heat Exchanger: High Efficiency Shell In Tube Name: High-Temperature Heat Pump
Material: Galvanized Sheet Use: Hot Water
Diemension: 890*690*880 Weight: 110

Product Description

Advanced Technologies and Professional Components of High-Temperature Heat Pumps



Product Description:

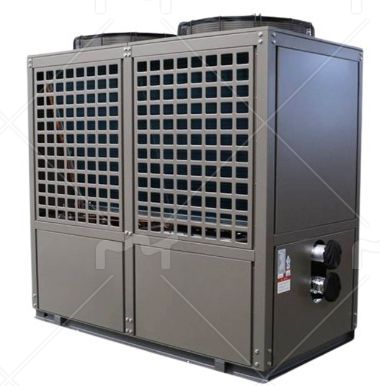

The Meidibao Air Source Heat Pump is designed to efficiently supply room temperature hot water using advanced air-to-water technology. With low power consumption and stable performance, it is ideal for residential or light commercial use. This system absorbs heat from the ambient air and transfers it into water, significantly reducing energy costs while ensuring a consistent hot water supply.



Feature:



  1. High Energy Efficiency
  2. Advanced Technology
  3. Safe and Environmentally Friendly
  4. Wide Application
  5. Easy Operation and Maintenance:
  6. Intelligent Control

Specification:

MODEL unit KFXRSG-09I
Factory Model Number   MDB-03HG
Applicable Ambient Temperature °C
Power Supply Specification / 220V 1N-50HZ
Rated Heating Capacity kw 9
Nominal Input Power kw 2.6
Maximum Operating Current A 8
Hot Water Output L/H 100
Refrigerant / High-temperature dedicated type
Air Outlet Mode / Push out the wind
Protection Class / IPX4
Outlet Water Temperature / 28-60℃
Inlet and Outlet Port Type MM DN25
Noise DB(A) ≤50
Dimensions MM 860*690*880
Weight KG 115



Advantages:



By adopting advanced technologies such as steam injection enthalpy increase and electronic expansion valves, it breaks through the temperature limitations of traditional heat pumps and still operates stably under a high-temperature working condition of 85℃. The fully enclosed scroll compressor is suitable for high compression ratios and ensures long-term efficient operation.

Advanced Technologies and Professional Components of High-Temperature Heat Pumps 0Advanced Technologies and Professional Components of High-Temperature Heat Pumps 1Advanced Technologies and Professional Components of High-Temperature Heat Pumps 2
